51 22 280 Removing and installing/replacing door stop on left or right rear door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close door windows
Remove SOUND INSULATION in front section

NOTE: Secure rear door against falling closed.

After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

Pull out rubber cover (1).

Release screw (3).

Tightening torque 51 22 5AZ .

Release screw (2).

Tightening torque 51 22 3AZ .

Slide out door stop.

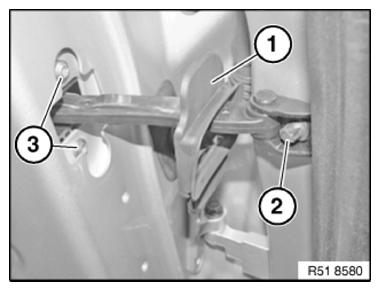

Fig 1: Identifying Rubber Cover, Screw And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Seal (1) must not be damaged.

Remove door stop (1) via aperture (2).

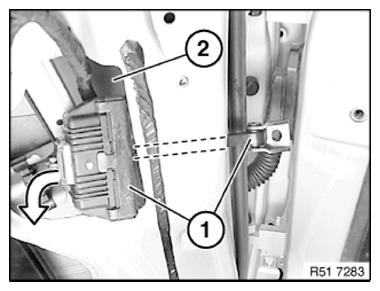

Fig 2: Removing Door Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

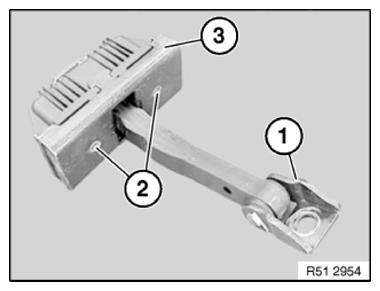

Fig 3: Identifying Hinge, Thread And Door Retainer
Courtesy of BMW OF NORTH AMERICA, INC.
