51 45 184 Removing and installing (replacing) trim panel for pedal mechanism (US only)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Read and comply with SAFETY REGULATIONS
for handling airbag modules and pyrotechnical belt tensioners.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Detach the BATTERY CABLE NEGATIVE TERMINAL .

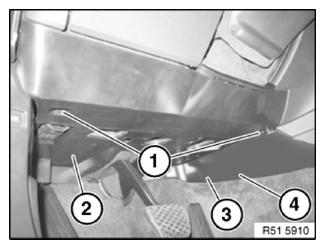

Release screws (1).
Installation note:
Replace screws.
Tightening torque 51 45 4AZ .
Unscrew screw (3) and remove carpet trim (4) by pulling forward.
Unclip panel for pedal assembly (2) and lower slightly.
Disconnect plug connections behind.
Remove panel for pedal assembly (2)
Replacement
- Remove FOOTWELL LIGHT
- Remove the SPEAKER OF THE HANDS-FREE SYSTEM
- Remove AIRBAG MODULE
