51 36 030 Removing and installing/replacing trim on left or right C pillar (on outside at rear side window)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

Trim (1) is secured to side window (3) with double-sided adhesive tape.

Detach trim (1) with special tool 00 9 322 from side window (2).

Completely remove adhesive residue.

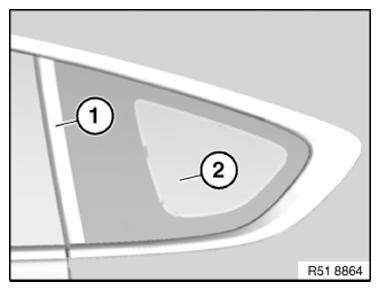

Fig 1: Identifying Trim And Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe NOTES for securing components with adhesive tape.

Ensure correct gap dimension (A) between trim (1) and door window glass (3).

A = 4.7± 0.8 mm

Affix trim (1) according to dimension (A) to side window (2)

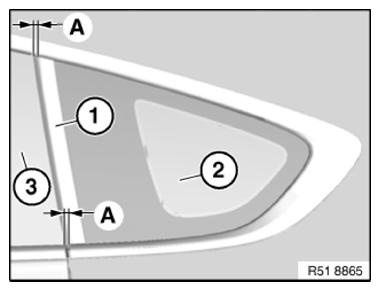

Fig 2: Identifying Gap Dimension Between Trim And Door Window Glass
