51 64 020 Removing and installing/replacing the top rear connection (connection of both wheel arches at front)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Only perform work after engine has cooled down.

IMPORTANT: Driving without the connection is not permitted. (risk of damage to the body).

Necessary preliminary work:

Remove SIDE ENGINE COMPARTMENT LID GASKET MOUNTING in working area

Release screws (1). (Not for M5/M6 model)

Tightening torque 51 61 1AZ .

Unfasten screws (2).

Tightening torque 51 61 3AZ .

Release screws (3).

Tightening torque 51 61 5AZ .

Release screws (4).

Release screw (5).

Tightening torque 51 61 6AZ .

Raise front connection (6) together with rear connection (7).

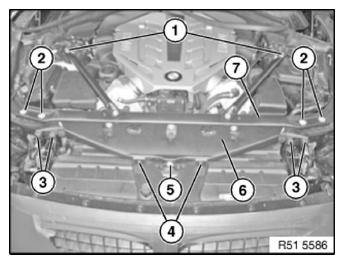

Fig 1: Identifying Side Engine Compartment Lid Gasket Mounting Screws

G09879705

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Raise front/rear connection (1) and disengage Bowden cable (2) at marked points.

Remove front/rear connection (1) with suspension cross-braces.

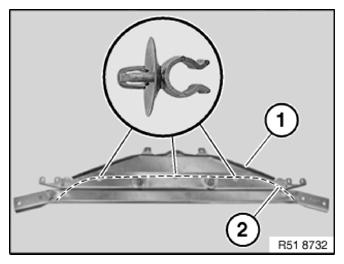

Fig 2: Identifying Front/Rear Connection And Bowden Cable

G09879706

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify SUSPENSION CROSS-BRACE ON LEFT AND RIGHT . (Not for M5/M6 model)

Release screws (1).

Tightening torque 51 61 4AZ .

Detach rear connection (2) from front connection (3).

Installation note:

Guide lug secures rear connection (2) to front connection (3).

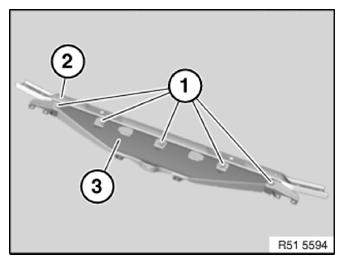

Fig 3: Identifying Suspension Cross-Brace, Screws

G09879707

Courtesy of BMW OF NORTH AMERICA, INC.

Only if replacing front connection (1):

Modify clips (2).

Fig 4: Identifying Front/Rear Connection And Bowden Cable

G09879708

Courtesy of BMW OF NORTH AMERICA, INC.
