51 21 330 Removing and installing/renewing window cavity cover strip on inner front door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM

Pull off window cavity cover strip (1) towards top.

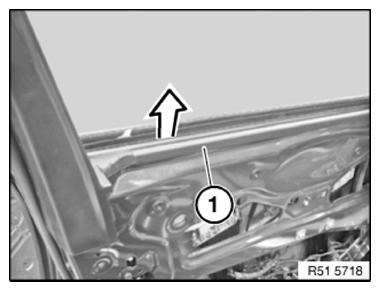

Fig 1: Pulling Off Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Coat window cavity cover strip (1) with water before fitting.

Start with installation at front.

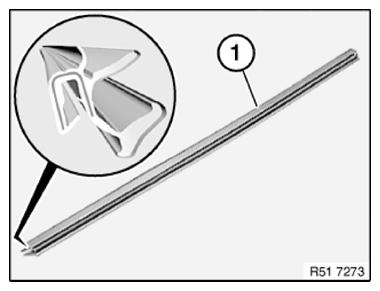

Fig 2: Identifying Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
