51 21 280 Removing and installing or replacing door brake on left or right front door
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove ACOUSTIC INSULATION

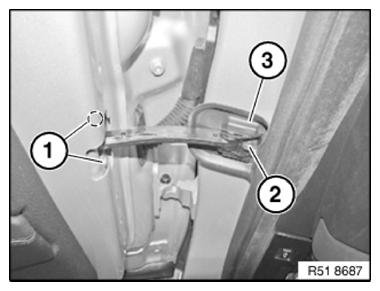

Release screw (1).
Tightening torque 51 21 5AZ .
Release screw (2).
Tightening torque 51 21 3AZ .
Slide out door stop.
Installation:
Rubber seal (3) must be laid out flat.
Necessary preliminary tasks:
- Remove ACOUSTIC INSULATION
Release screw (1).
Tightening torque 51 21 5AZ .
Release screw (2).
Tightening torque 51 21 3AZ .
Slide out door stop.
Installation:
Rubber seal (3) must be laid out flat.
