51 21 225 Removing and installing/replacing inside door opener in left or right front door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL

Release screws (1).

Carefully remove door opener (2).

IMPORTANT: If the door opener is pulled out too vigorously, there is a risk of damage to the door opener and the Bowden cable.

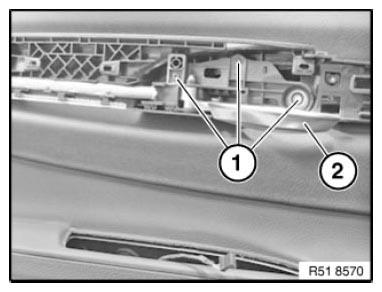

Fig 1: Identifying Door Opener And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock holder for Bowden cable (1) and remove door opener (2).

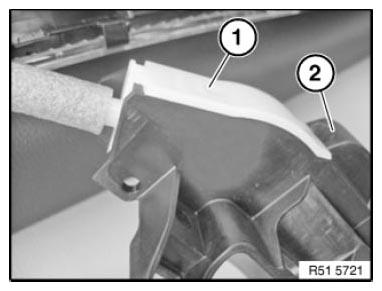

Fig 2: Identifying Bowden Cable And Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.
