51 31 030 Removing and installing/replacing water strip on left and right (side cover)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LOWER COWL PANEL FROM WINDSCREEN

IMPORTANT: Rubber frame (1) features an aluminium strip (6).
Carefully unwind rubber frame (1) (windscreen breakage).

NOTE: Tear-off lip (4) may be stuck to adhesive (3).
When rubber frame (1) is removed, tear-off lip (4) can tear off and remain in vehicle.

2 Windscreen
5 Pinched butyl
7 Sealing lip installed

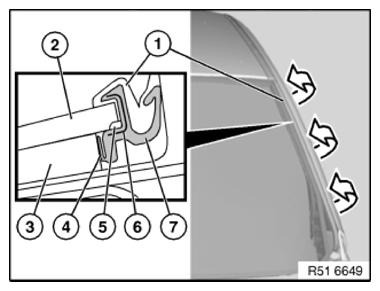

Fig 1: Removing Lower Cowl Panel From Windscreen
Courtesy of BMW OF NORTH AMERICA, INC.

When replacing without removing windscreen:

If adhesive leaks over tear-off lip (4), this area must be cut out partially.

Detach tear-off lip (4) from rubber frame (1).

To facilitate installation, coat rubber frame (1) and body aperture with water.

Replacement with removed/new windscreen

Fit rubber frame (1) with tear-off lip (4).

Installation note:

Make sure roof strip (1), upper windscreen cover (2) and rubber frame on left and right (3) are correctly positioned in relation to each other (wind noises).

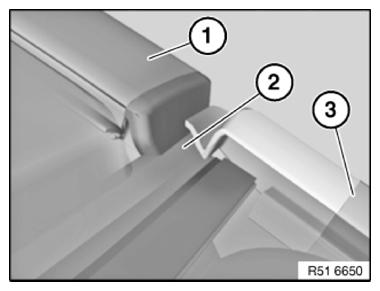

Fig 2: Identifying Roof Strip, Windscreen Cover And Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.
