51 31 015 Repairing damage to windscreen caused by stone chips (clear and tinted laminated safety glass)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

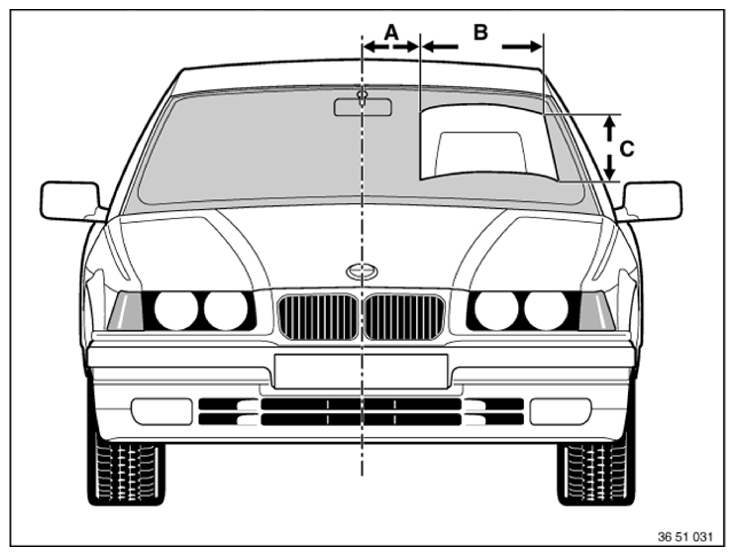

Field of vision (no repairs acceptable):
- 50 mm (gap between field of view/center of vehicle)
- Up to end of wiper range, outside (field of view width)
- Restriction by wiper range (field of view height)
IMPORTANT:
Repairs must only be carried out outside of the field of vision (refer to illustration).
If the stone chip damage is outside the field of vision, refer to REPAIR INSTRUCTION .
If the stone chip damage is outside the field of vision, refer to REPAIR INSTRUCTION .
