51 47 439 Removing and installing or replacing rear carpet on seat pan
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trims from bass speaker on left and right. See DRIVER'S SIDE (UNDER FRONT SEAT) and PASSENGER'S SIDE (UNDER FRONT SEAT) .
- Remove CENTER CONSOLE SUPPORT
- Remove LOWER DOOR PILLAR TRIM PANEL , left and right
- Release screws from rear seat backrest frame in area of carpet on seat frame. See RIGHT REAR SEAT BACKREST FRAME and LEFT REAR SEAT BACKREST FRAME .

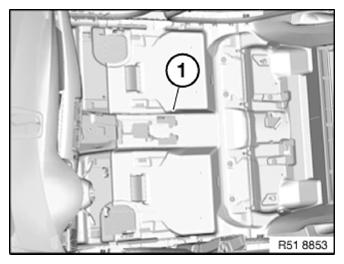

Remove carpet (1) toward front/top and if necessary feed out cable.
Installation:
Slightly raise both seat-backrest frames.
