51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FLAP IN LUGGAGE COMPARTMENT ON LEFT
- Remove CAPPING PANEL
- Remove TRIM ON C-PILLAR AT BOTTOM

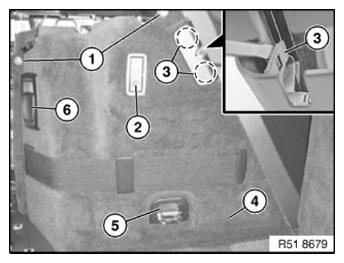

Release expander rivets (1).
Unlock retaining tab (3) from lock cover through opening as shown and twist to pull out lock cover in an outward direction.
Lever off cover at lashing eye (5). Release screws underneath. Lay lashing eye (5) to one side.
Use multifunction hook (2) to pull up and remove wheel arch panel (4).
Pull out release lever (6) from cargo cover and remove wheel arch panel (4).
Replacement
Modify multifunction hook.
Modify rubber pull.
