51 47 065 Removing and installing/replacing rocker panel trim on front left or right entrance (outer)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Lift cover panel (2) up and out at clips (1) using special tool 00 9 317 .

Remove cover (2).

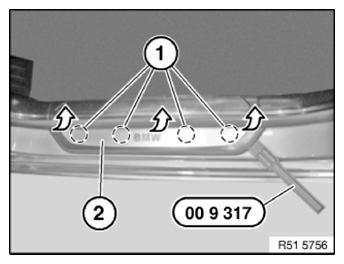

Fig 1: Lifting Cover Panel
G09879640Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, remove clips (1) from entrance with a suitable tool.

Replace faulty clamps (1).

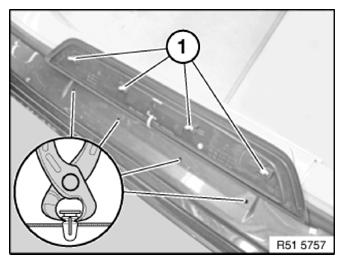

Fig 2: Removing Clips
G09879641Courtesy of BMW OF NORTH AMERICA, INC.
