51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

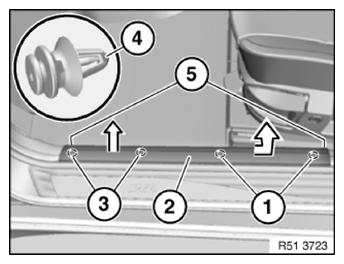

Disengage retaining lugs (5) of front sill cover strip (2) from both adjoining panels.
IMPORTANT:
Carefully lever out front sill cover strip (2).
Lever out front sill cover strip (2) at front retaining points (3).
Pull back front sill cover strip (2) and feed out of rear retaining points (1).
Position front sill cover strip (2) pre-installed with clips on associated holes and clip into place.
Installation:

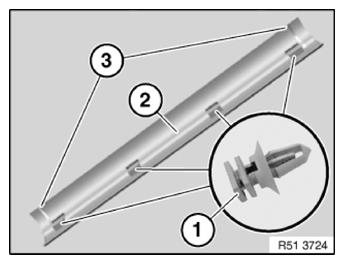

The rails of front sill cover strip (2) must not be damaged.
Retaining lugs (3) of front sill cover strip (2) must not be damaged.
If necessary, lever out remaining clips (1) in floor panel.
If necessary, replace faulty clips (1).
Slide clips (1) into rails of front sill cover strip (2).
