36 10 713 Checking one road wheel on balancing machine for lateral and radial runout (wheel removed)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks

Remove WHEEL

Mount wheel in balancing machine.

To avoid clamping errors, fit the wheel on the balancing machine in the same way as it is also fitted on the vehicle (valve position facing down).

Fig 1: Mounting Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel centering element supplied with corresponding balancing machine.

Basic flange
Wheel centering element
Type flange
Clamping nut

Fig 2: Identifying Basic Flange, Wheel Centering Element, Type Flange And Clamping Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 36 1 030 for checking.

Special tool 36 1 030 consists of:

Base 36 1 031
Post with clamp 36 1 032
Holder with clamp 36 1 033
Clamp 36 1 034
Measuring roll 36 1 035
Dial gauge 36 1 036

Fig 3: Identifying Special Tool (36 1 030) Components
Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire tread surface.

Turn wheel by hand and measure max.

Radial tire runout: see WHEEL AND TIRES - TECHNICAL DATA .

NOTE: Measuring device must be vertical to tire tread surface.

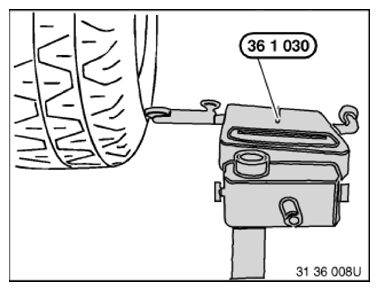

Fig 4: Positioning Special Tool 36 1 030 On Tire Tread Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire sidewall.

Turn wheel by hand and measure max.

Lateral tire runout: see WHEEL AND TIRES - TECHNICAL DATA .

NOTE: Measuring device must be vertical to tire side wall.

Never measure on tire inscription!

If necessary, check DISC WHEEL (wheel rim) for radial and face runout.

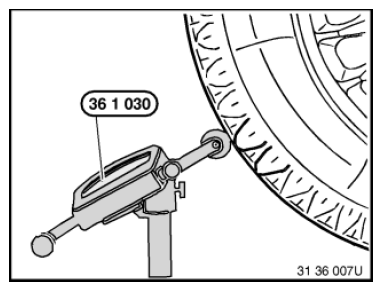

Fig 5: Positioning Special Tool 36 1 030 On Tire Sidewall

Courtesy of BMW OF NORTH AMERICA, INC.
