35 21 000 Removing and installing/replacing brake pedal

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel at bottom left. Refer to 51 45 180 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT .

Remove trim for pedals. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDALS .

If necessary, remove reinforcement plate and switch unit.

NOTE: After installation: Adjust brake light switch. Refer to 61 31 310 REPLACING BRAKE LIGHT SWITCH .

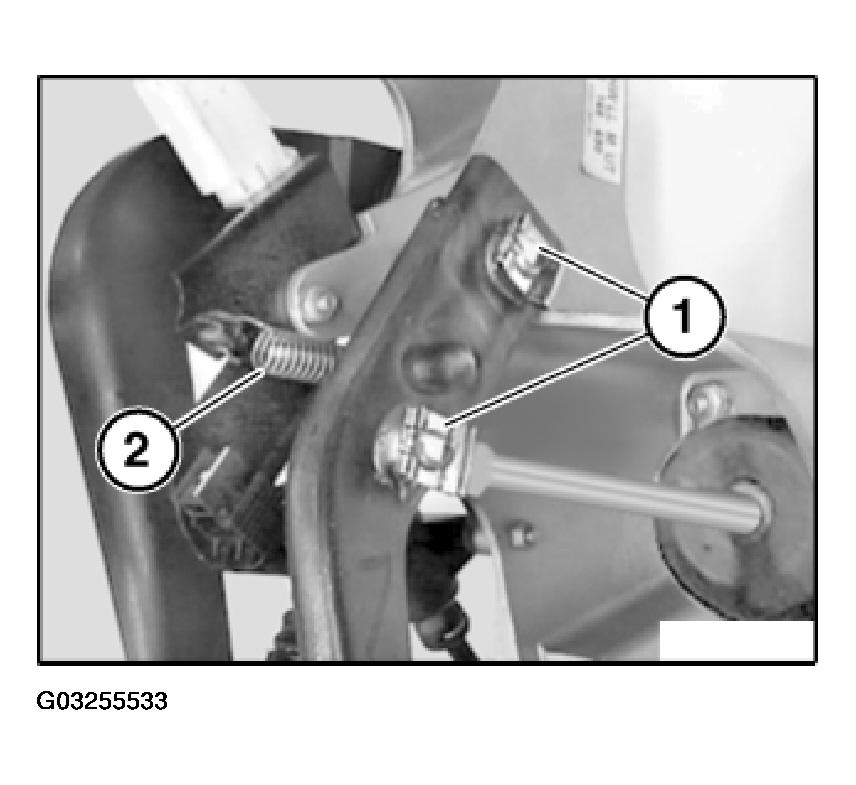

Raise lugs on retainers (1) and detach retainers. Unhook spring (2).

Fig 1: Removing Brake Pedal Retainer And Spring

Courtesy of BMW OF NORTH AMERICA, INC.

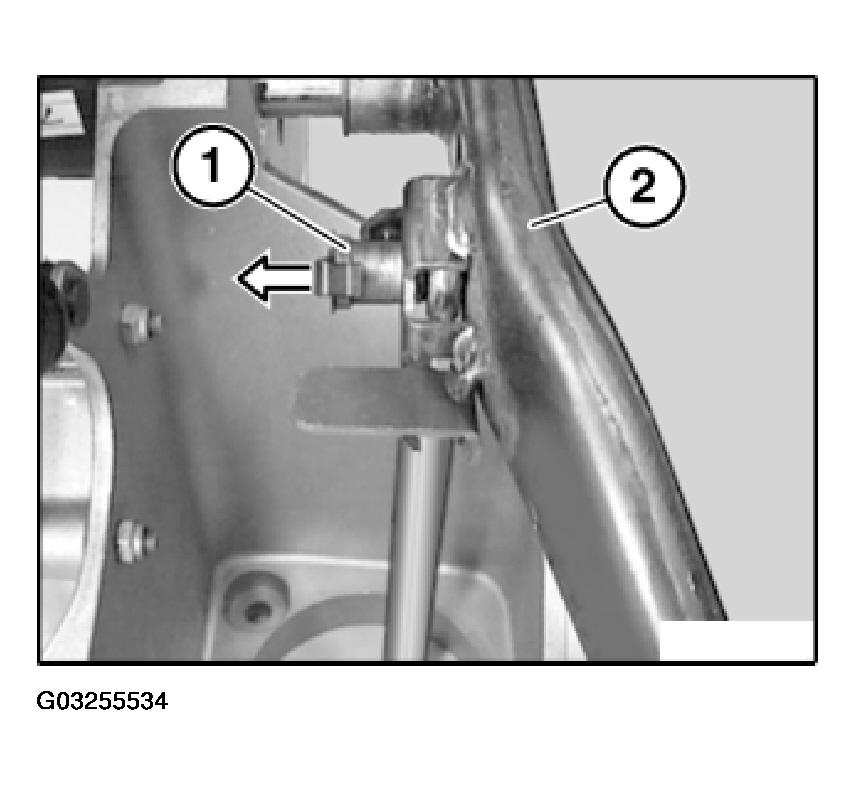

Pull out retaining pin (1) and detach piston rod from brake pedal.

Remove brake pedal (2).

Fig 2: Removing Piston Rod And Brake Pedal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

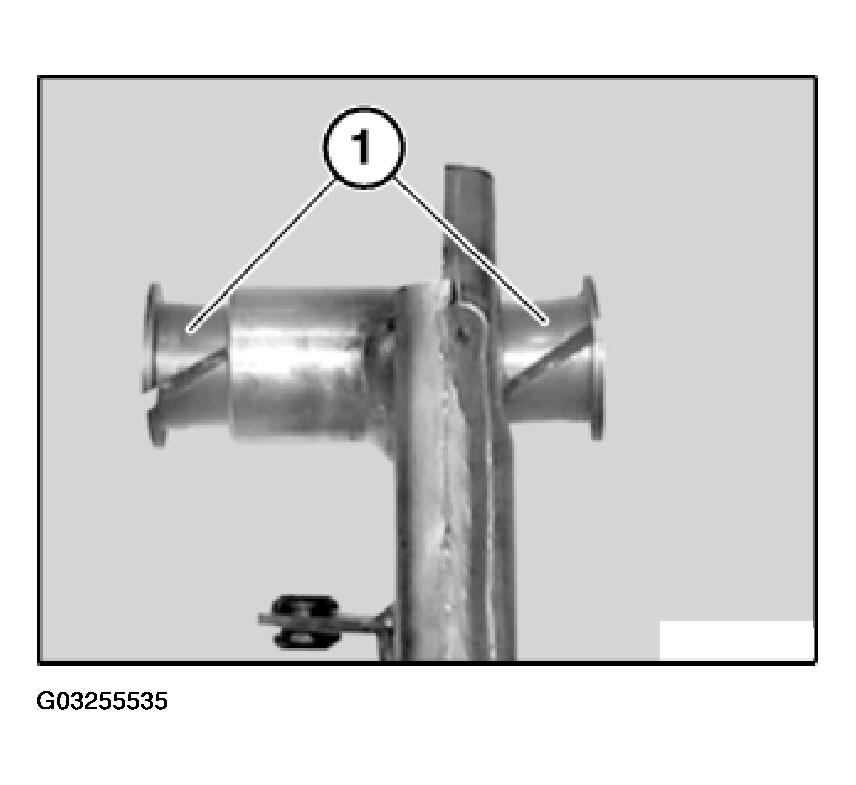

Check bearing bushes (1) and replace if necessary.

Fig 3: Identifying Bearing Bushes

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a light coat of grease to bearing bushes (1) and bore, refer to BMW SERVICE OPERATING FLUIDS .
