26 12 001 Replacing complete propeller shaft center bearing (constant-velocity joint): Procedure

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove propeller shaft, refer to 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .

IMPORTANT: Propeller shaft is balanced as a unit.

Mark front propeller shaft relative to rear propeller shaft with paint stick.

Marking by means of engraving which causes surface damage (e.g. centre mark) is not permitted.

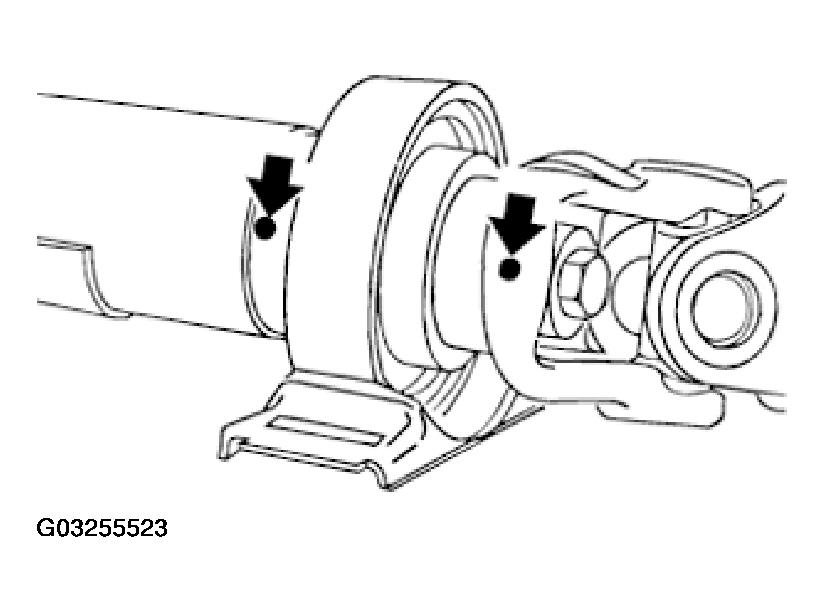

Fig 1: Placing Marks On Front And Rear Propeller Shafts

Courtesy of BMW OF NORTH AMERICA, INC.

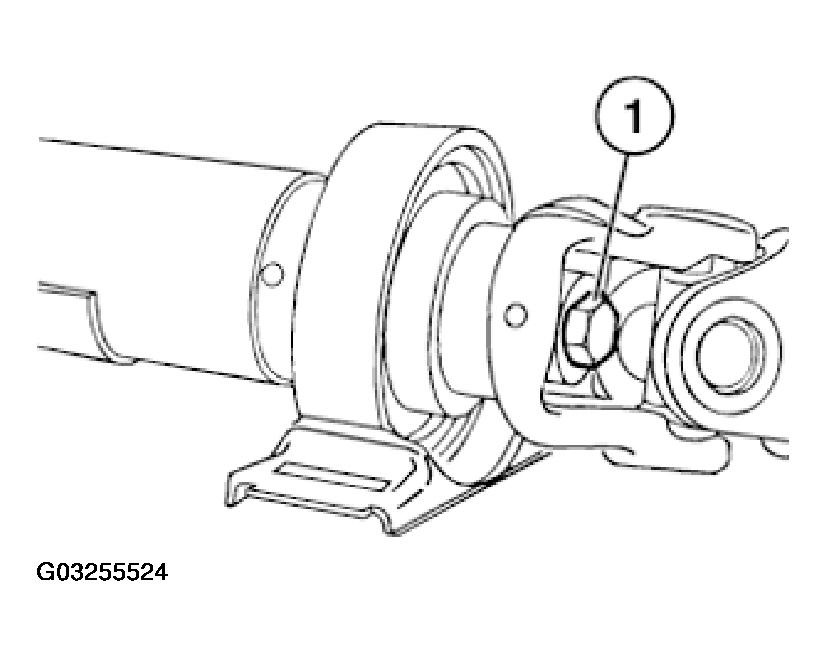

Release screw (1).

Fig 2: Removing Propeller Shaft Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Pull propeller shaft apart.

Installation:

Thread free from grease.

When pushing shaft together, make sure that markings match up.

Insert bolt (1) with thread-locking liquid.

Tightening torque, refer to 26 11 5AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5 .

Remove shim and dust gaiter.

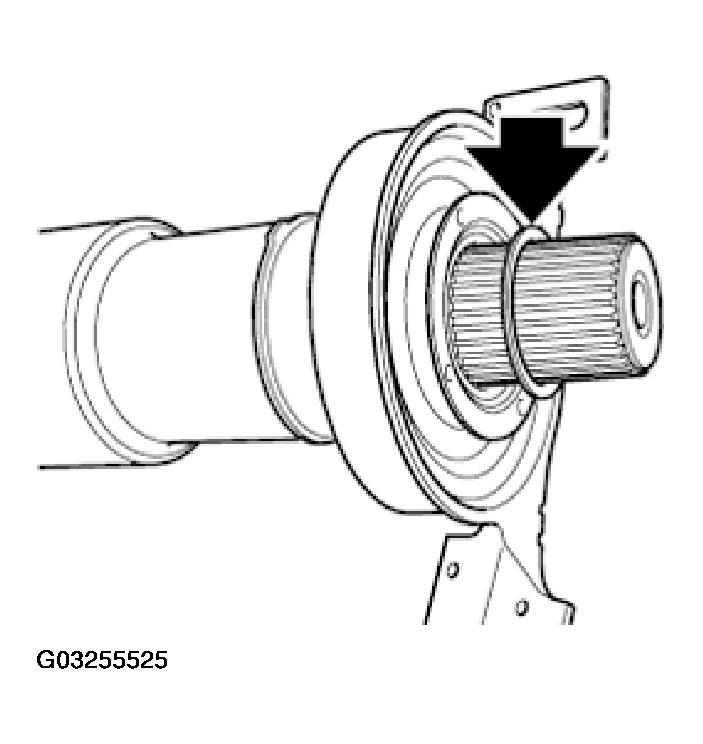

Fig 3: Removing Shim

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off centre bearing with special tool 00 7 500/33 1 307 and commercially available puller.

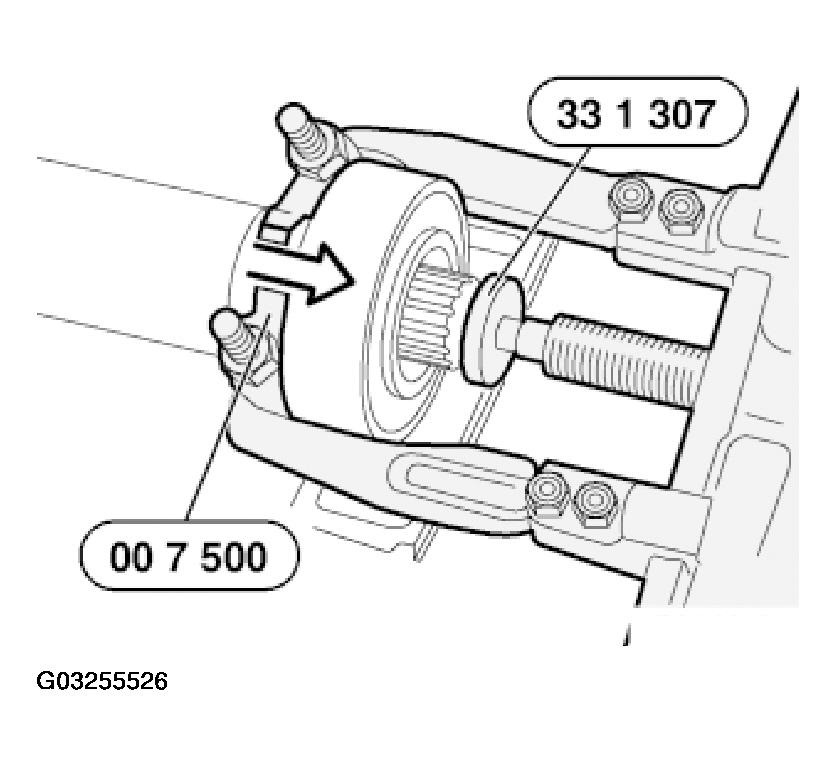

Fig 4: Removing Centre Bearing From Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Drive new centre bearing firmly home with special tool 24 0 090 or 24 1 050.

NOTE: Bearing inside diameter 30 mm, use special tool 24 0 090.
Bearing inside diameter 35 mm, use special tool 24 1 050.

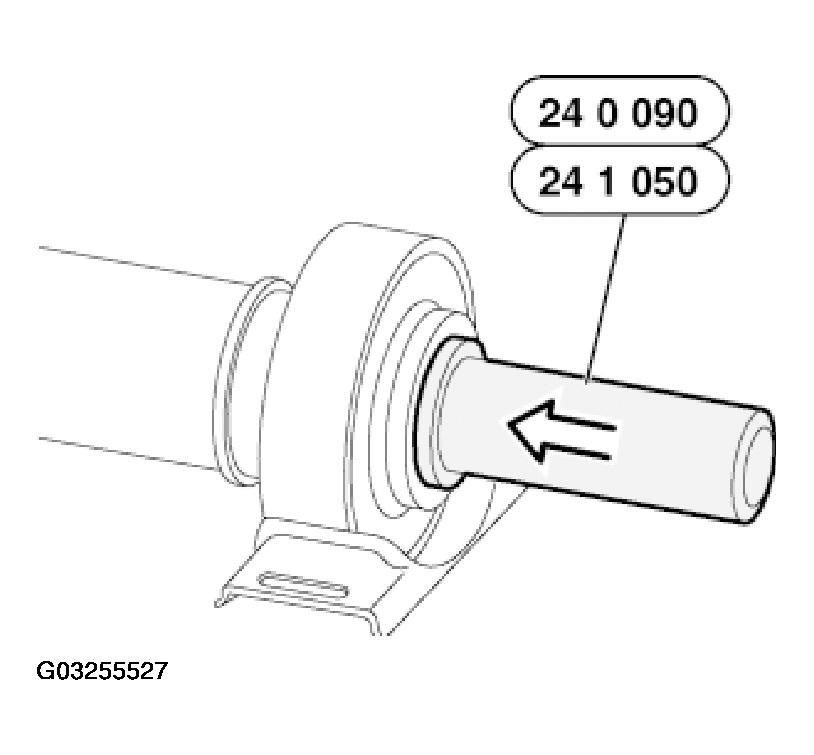

Fig 5: Installing New Centre Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
