17 21 010 Removing and installing/replacing transmission oil cooler (GS7S47BG SMG)
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
It is essential to adhere to the exact filling capacities specified.
Fill transmission at room temperature only (approx. 20-30 °C).
Refer to 00 11 230 CHANGING / TOPPING UP / CHECKING GEAR OIL IN MANUAL TRANSMISSION .
Gear oil:
refer to MANUAL TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission.
Fill transmission at room temperature only (approx. 20-30 °C).
Refer to 00 11 230 CHANGING / TOPPING UP / CHECKING GEAR OIL IN MANUAL TRANSMISSION .
Gear oil:
refer to MANUAL TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission.
Recycling
Catch and dispose of gear oil with suitable equipment.
Observe country-specific waste-disposal regulations.
Necessary preliminary tasks
- Unscrew and remove splash guard.
- Remove REINFORCEMENT PLATE
.
Important notes on installation are described in this work step
- Remove heat shields.
- Drain OIL IN MANUAL TRANSMISSION .

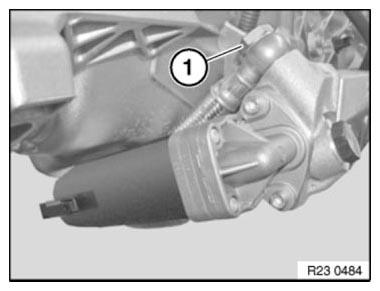

Disconnect connector (1).

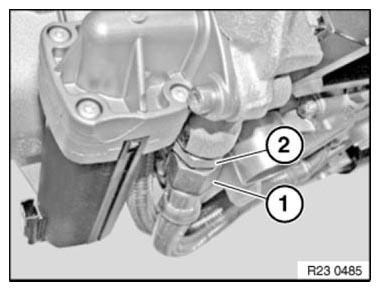

Release union nut (1).
Tightening torque 23 41 19AZ .
Remove oil cooler connection (2).
Tightening torque 23 41 20AZ .
Release banjo bolt (1).
Installation:
Replace banjo bolt with seal.
Tightening torque 23 41 18AZ .
Release screw (1). Remove gear oil cooler in direction of arrow.
Tightening torque 23 41 16AZ .
Installation:
Journal (1) on gear oil cooler must be secured in rubber grommet (2).
