54 12 497 Removing and installing/replacing wind deflector for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Open the glass slide/tilt sunroof cover.

Lever out spring. (1) on left and right.

Pull the wind deflector (2) towards the rear and out of its support (3).

Installation:

Perform function check.

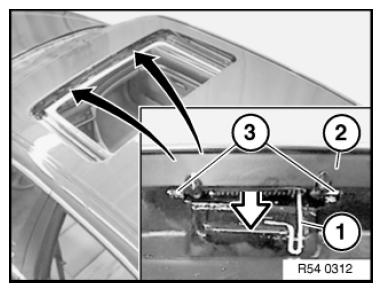

Fig 1: Identifying Spring, Wind Deflector And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the retaining pins (1) for the wind deflector (2) into the holders (4).

The pins (3) must snap in correctly.

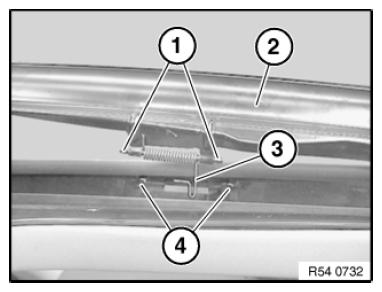

Fig 2: Identifying Retaining Pins, Wind Deflector And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Place the wind deflector (1) in a vertical position and pull it upwards out of the supports (3) together with the levers (2) on the left and right.

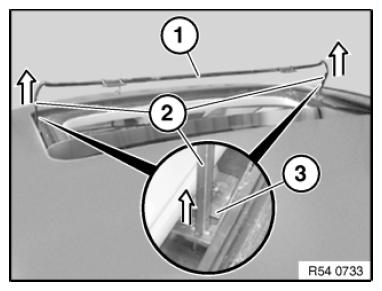

Fig 3: Pulling Wind Deflector Upwards Out Of Supports Together With Levers On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Turn the lever (1) until the retainer (3) is in line with the opening (2) and remove the lever (1) from the wind deflector (4).

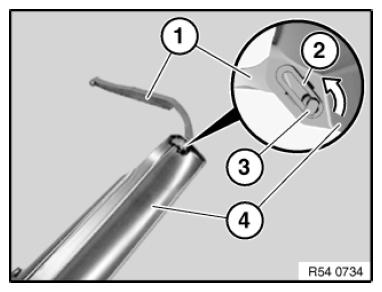

Fig 4: Identifying Lever, Retainer, Opening And Wind Deflector
