54 12 270 Removing and installing/replacing actuator for glass slide/tilt sunroof lid on left/right

Remove glass slide/tilt sunroof lid.

Close the glass slide/tilt sunroof (zero setting).

Disengage the lever (2) from the actuator (1).

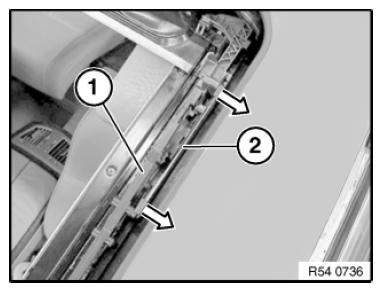

Fig 1: Identifying Lever And Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking catches (1) of lever. (2) must not be damaged.

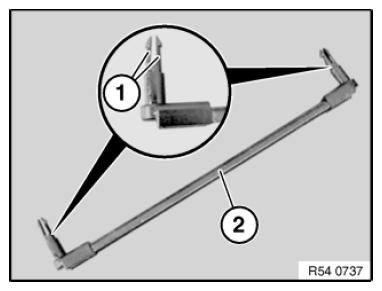

Fig 2: Locking Catches Of Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When the glass slide/tilt sunroof is in the zero setting, the marking (1) on the actuator must be above the marking (2) on the slide.

If necessary, move the actuator or the slide.

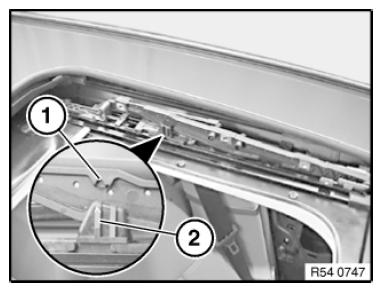

Fig 3: Identifying Marking On Actuator And Marking On Slide

Courtesy of BMW OF NORTH AMERICA, INC.

Move the glass slide/tilt sunroof into "raise position".

Pull the actuator. (3) and the carriage. (1) together towards rear until the actuator. (3) can be disengaged from the slide. (2).

Grip the slide. (2) firmly in the process.

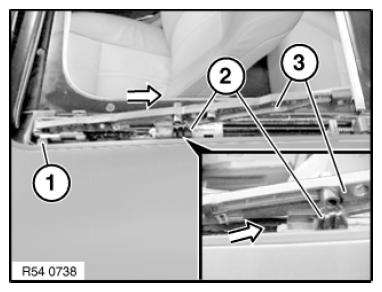

Fig 4: Identifying Slide, Actuator And Carriage

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the actuator. (1) upwards.

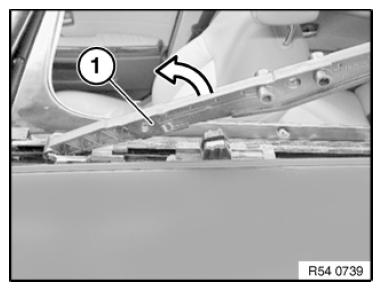

Fig 5: Turning Actuator Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage the actuator (1) from the carriage (2).

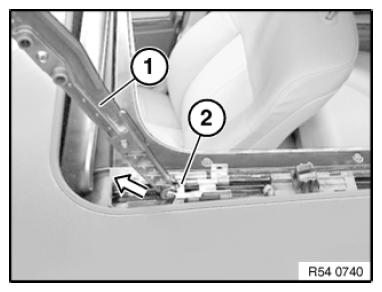

Fig 6: Disengaging Actuator From Carriage

Courtesy of BMW OF NORTH AMERICA, INC.
