Flushing Oil Cooler With Lines (Automatic Transmission): Notes

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Carry out the work steps listed when:

Fitting a new or replacement transmission.
Flushing can only be carried out with the automatic transmission removed.

Procedure:

Automatic transmission removed.

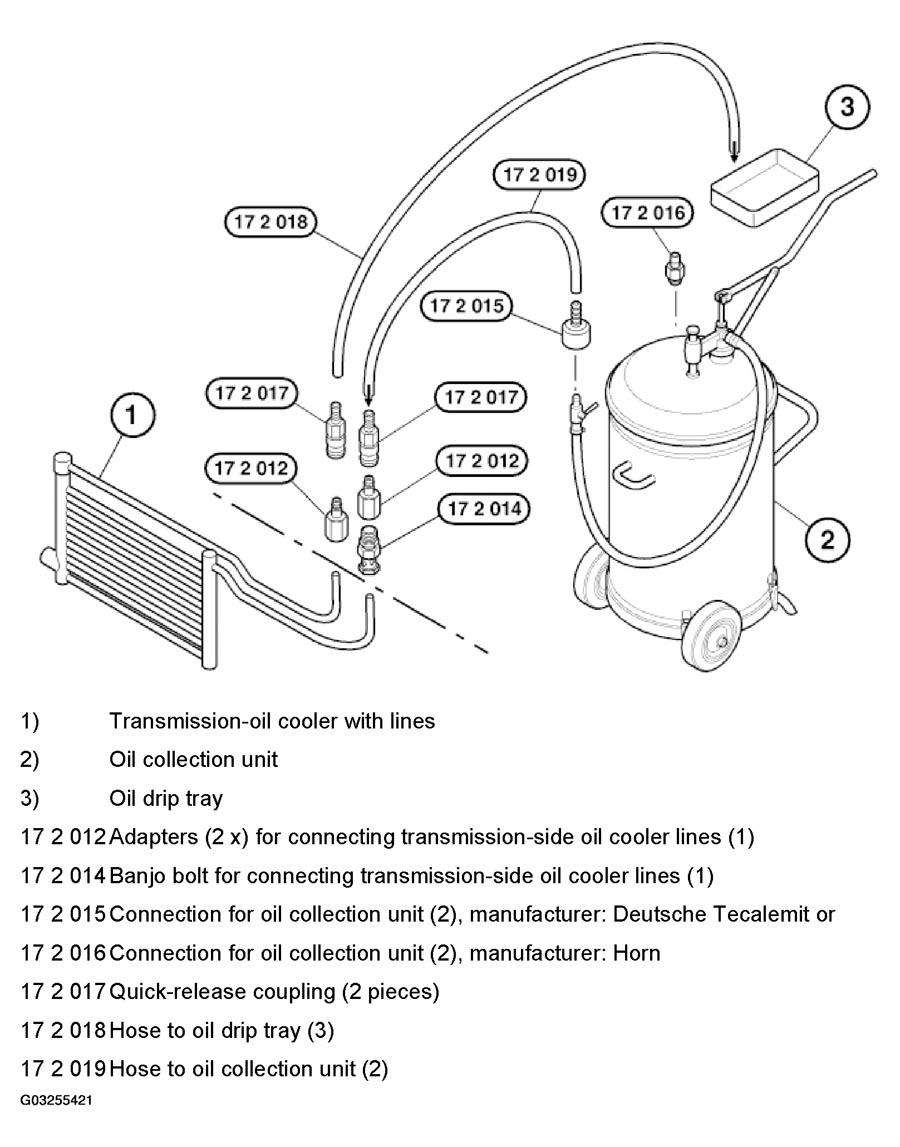

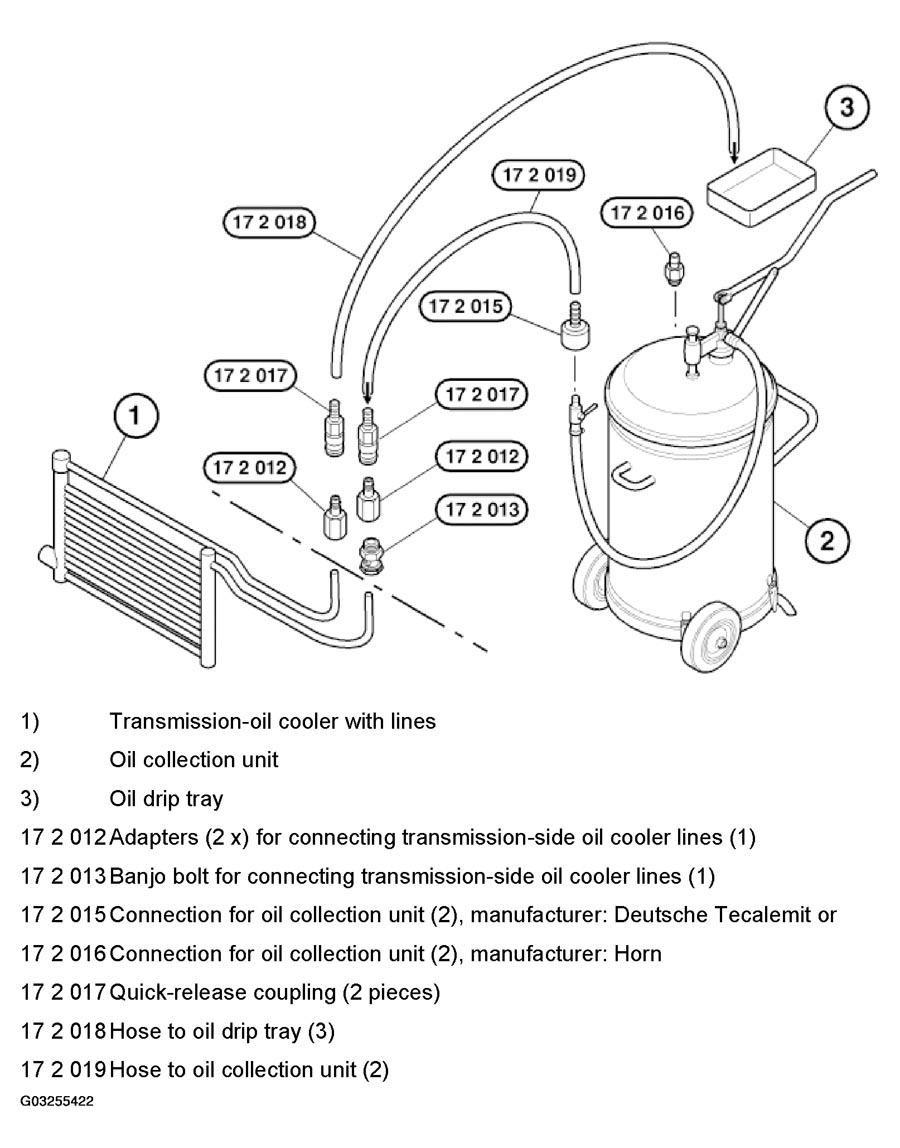

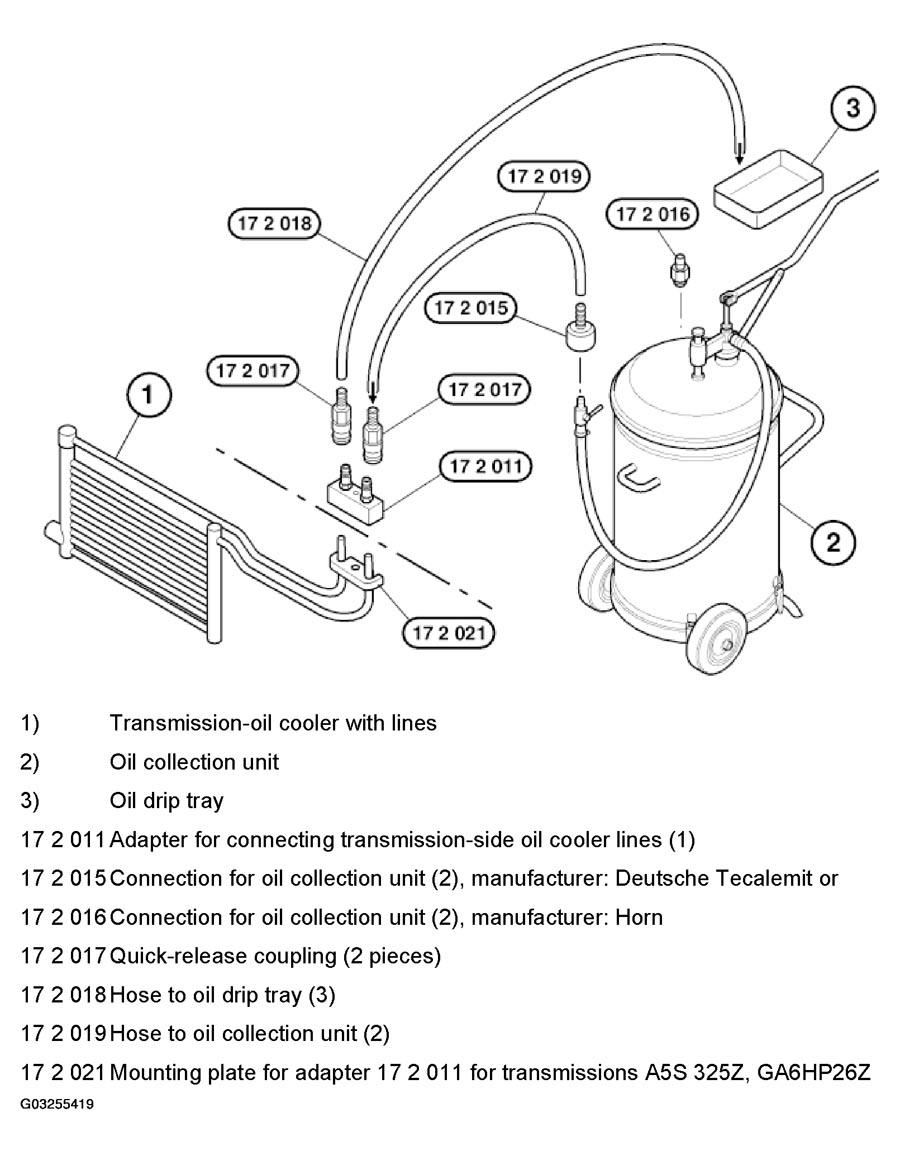

Connect appropriate adapters (see Figure, Figure, Figure or Figure) to oil lines exiting from automatic transmission.

Connect the connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Feed open end of drain line into a suitable collection container.

Using oil collection unit, flush approx. 1 liter of transmission fluid (refer to BMW SERVICE OPERATING FLUIDS MG17 ) through oil lines and oil cooler.

Reposition quick-release couplings.

Flush oil lines/oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to BMW SERVICE OPERATING FLUIDS MG17 ).

Disconnect quick-release couplings, remove adapters.

NOTE: Dispose of flushing oil properly; do not under any circumstances reuse it.
