17 11 100 Removing and installing/replacing coolant expansion tank (M62)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Open cap on coolant expansion tank only after engine has cooled down.

NOTE: Follow instructions for working on cooling system, refer to 17 00 ... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM

Recycling Catch and dispose of drained coolant. Observe country-specific waste-disposal regulations.

Drain off coolant only down to lower edge of coolant expansion tank,

refer to 17 00 005 DRAINING AND TOPPING UP COOLANT (M62, M54 AND M57) .

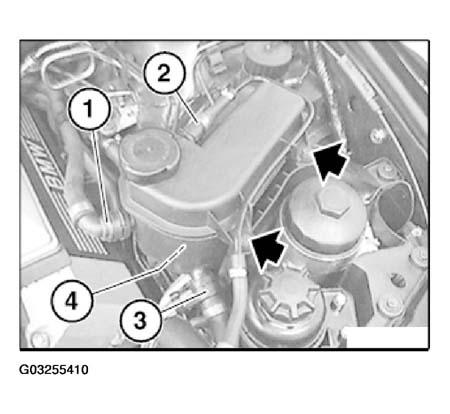

Detach water hose (1) from coolant expansion tank.

Detach vent hose (2) from coolant expansion tank.

Detach water hose (3) from coolant expansion tank.

Disconnect plug (4) from coolant level sensor.

Release screws.

Remove coolant expansion tank towards top.

Fig 1: Removing Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When installing coolant expansion tank:

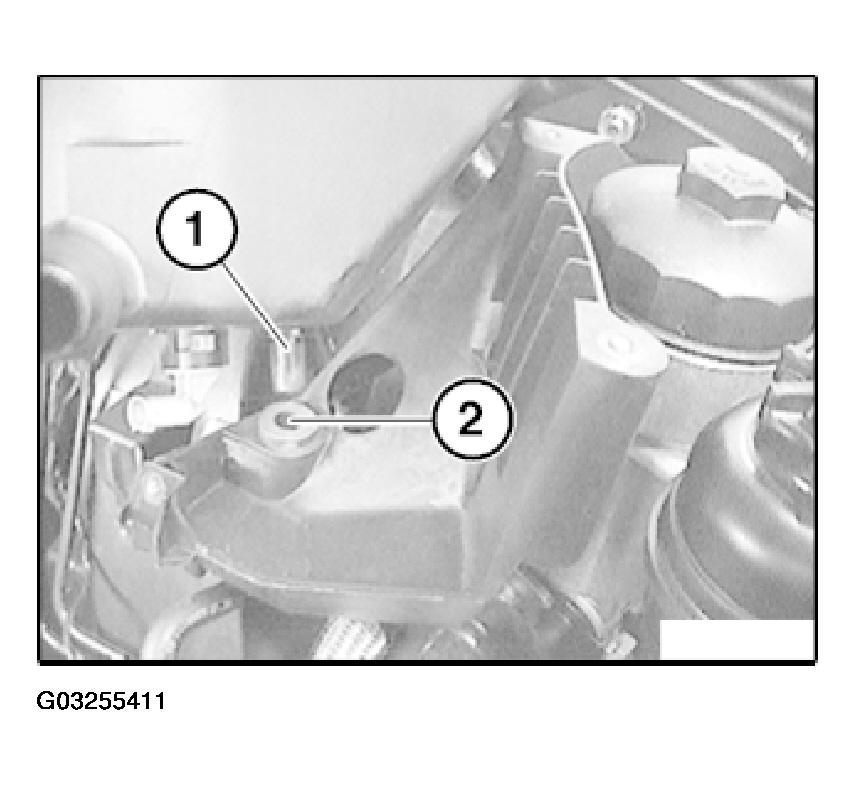

Insert locating pin (1) into locating bore (2).

Fig 2: Installing Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tank marking indicates coolant level at approx. 20°C.

Use only recommended coolant,

refer to BMW SERVICE OPERATING FLUIDS MG17 .

Slowly top up coolant expansion tank with coolant until maximum fill level is reached (float needle at height of top edge on expansion tank).

Vent cooling system and check for leaks,

refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (M62) .

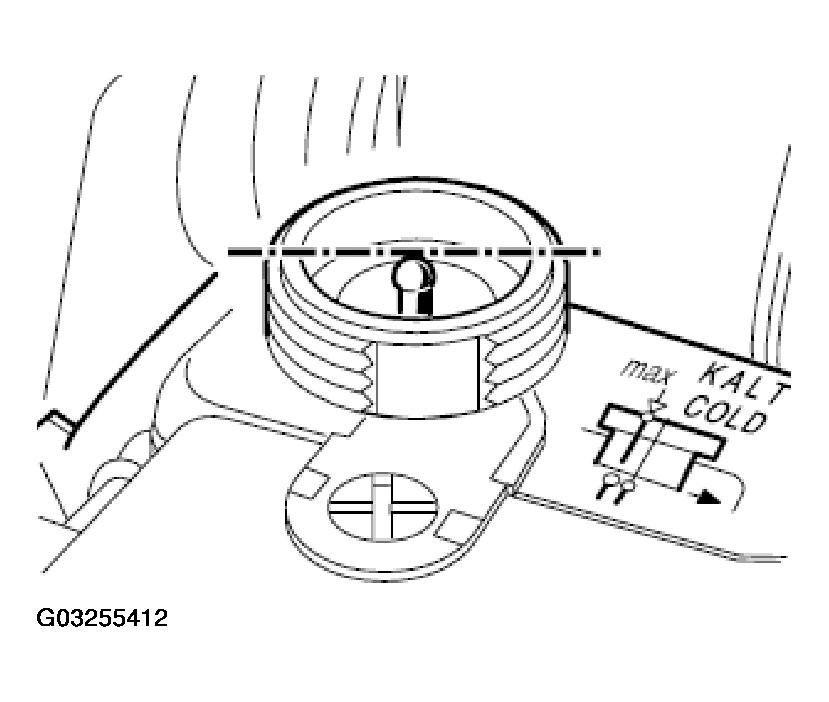

Fig 3: Checking Fluid Level

Courtesy of BMW OF NORTH AMERICA, INC.
