17 11 031 Replacing fan cowl (M62/M54)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

M62 only:

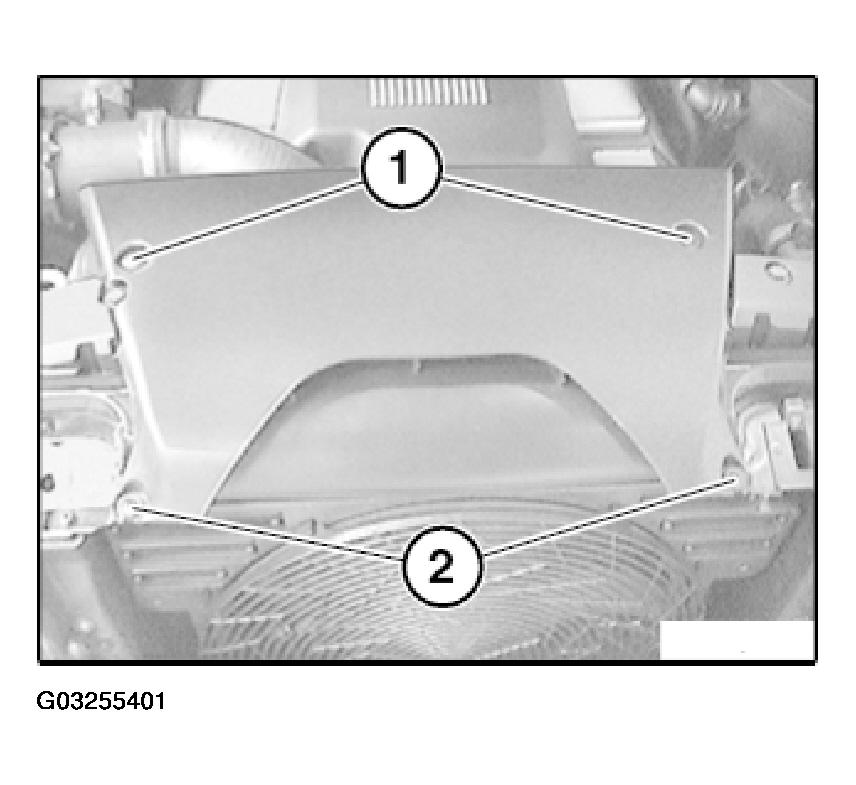

Lever out expansion rivets (1).

Fig 1: Removing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Tightening torque, 4 Nm.

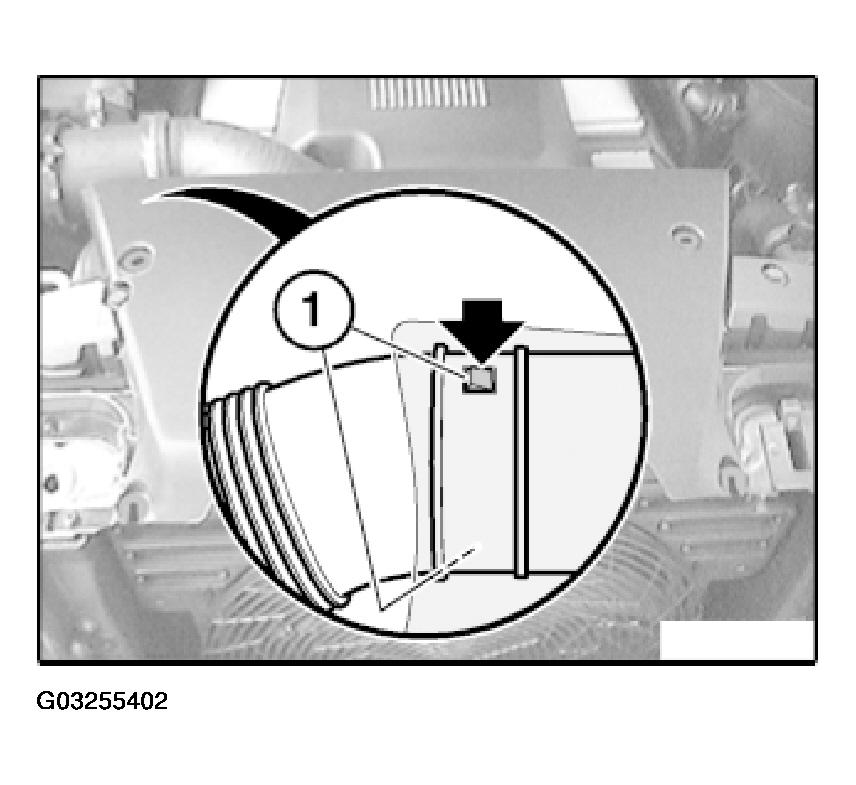

NOTE: Intake pipe is secured in intake hood by means of two retaining lugs(1).

Retaining lugs are located under intake hood.

Press in retaining lugs (1) and remove intake hood.

Fig 2: Removing Intake Hood

Courtesy of BMW OF NORTH AMERICA, INC.

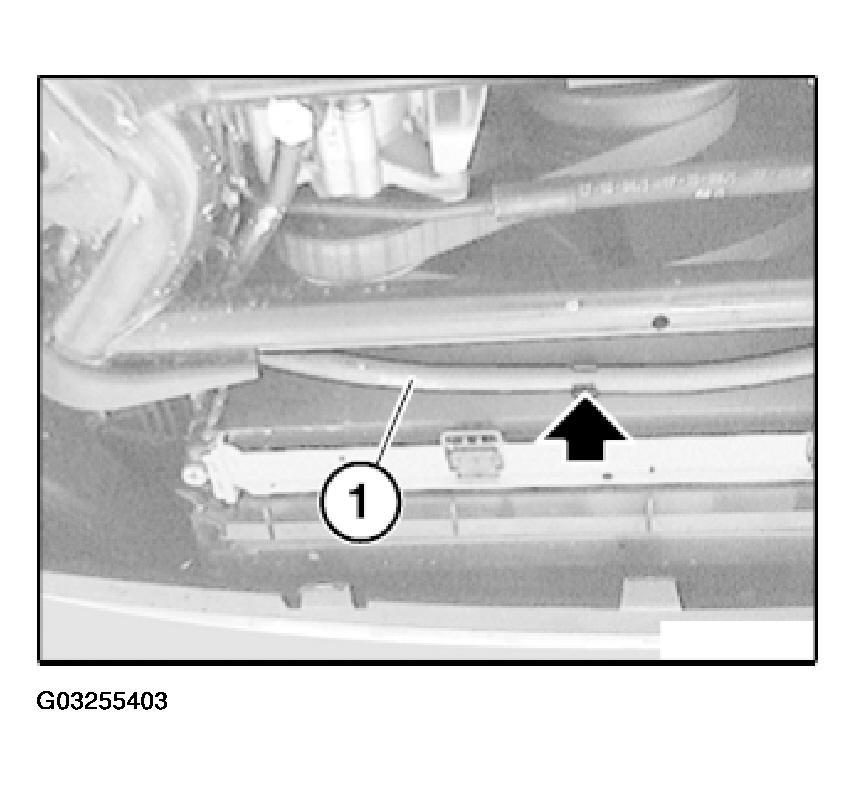

Unclip water hose (1) from holder on fan cowl.

Fig 3: Unclipping Water Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, this work step is shown on the car from below. Underbody paneling does not have to be removed. Water hose (1) can be pulled out of holder from above.

M62, M54,

Remove fan impeller with fan clutch. Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING .

Detach plug (1) from AUC sensor.

Unlock plug connection (2) and unclip cable.

Fig 4: Detaching Plug From AUC Sensor
