62 11 280 Removing and installing (replacing) instrument cluster

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Extend steering wheel completely and lower.

Release screws (1). Tightening torque 62 11 1AZ .

Pull instrument cluster (2) forwards a little.

Disconnect associated plug connection.

Remove instrument cluster (2).

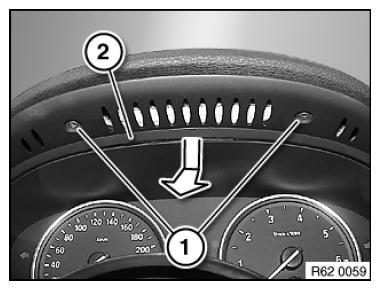

Fig 1: Identifying Instrument Cluster And Instrument Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

Check values for Condition Based Service (CBS) and correct if necessary.
