62 30 005 Removing and installing/replacing trim for Head-Up Display

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Use special tool 00 9 317 to lift the trim for the Head-Up Display (1) out of the dashboard in the direction of the arrow.

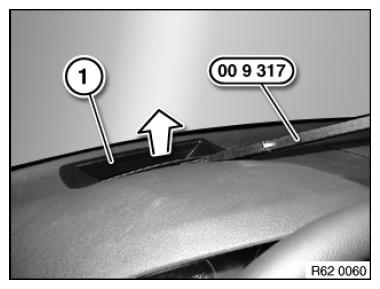

Fig 1: Lifting Trim For Head-Up Display Out Of Dashboard Using Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure retaining clamps (1) are correctly seated on trim for Head-Up Display.

Make sure trim for Head-Up Display is correctly engaged on dashboard.

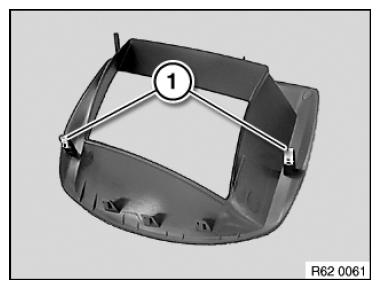

Fig 2: Identifying Retaining Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
