Section 3496 (Airbag, Audio, Navigation And Anti-Theft - Repair (ACTIVEHYBRID))
>>
Airbag Control Units, Airbag Sensors
>>
65 77... Overview of sensors for airbag system
65 77... Overview of sensors for airbag system
WARNING:
This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

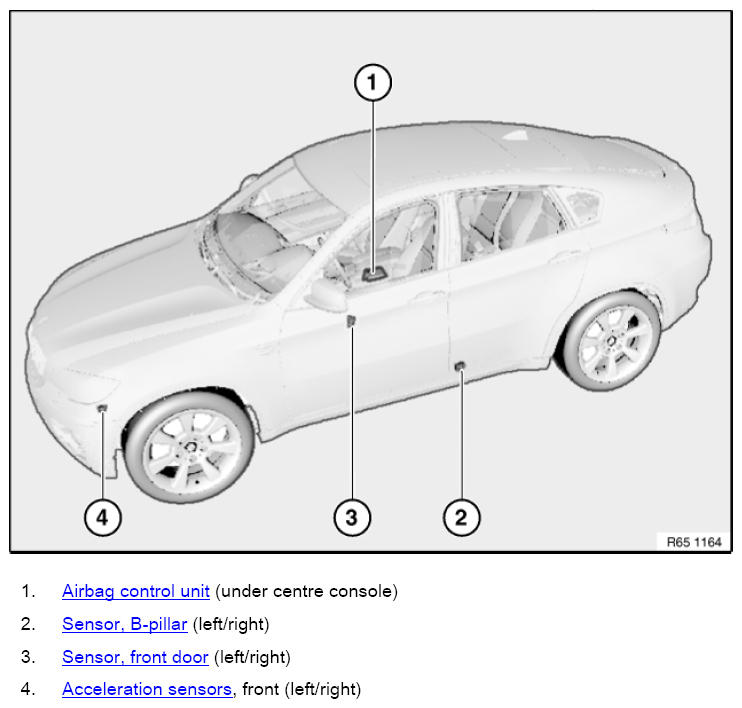

Fig 1: Overview Of Sensors For Airbag System
Courtesy of BMW OF NORTH AMERICA, INC.
