63 10 004 Adjusting headlights

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Observe TEST PRECONDITIONS FOR ADJUSTING HEADLIGHTS .

Carry out headlight adjustment at adjusting screws (1) and (2).

IMPORTANT: Turn adjusting screw (1) with a ball-head Allen key (3).

A definite allocation of adjusting screws is not possible.

Adjustment screw primarily for vertical adjustment
Adjusting screw primarily for lateral adjustment

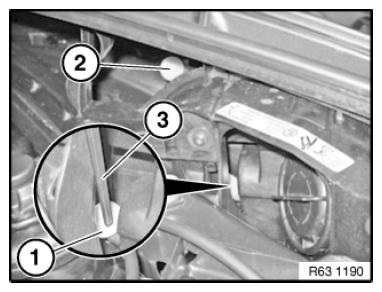

Fig 1: Turning Adjusting Screw With Ball-Head Allen Key
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In isolated cases the situation may arise where adjusting screw (1) can only be turned with difficulty.

Recommendation:

Drill hole on module carrier at point (2) in shaft of adjusting screw (dia. approx. 8 mm).

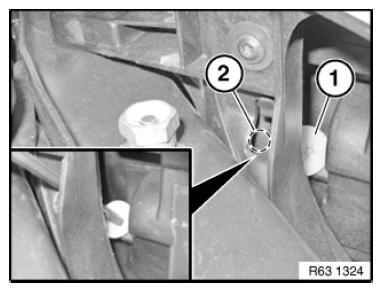

Fig 2: Drilling Hole On Module Carrier At Point In Shaft Of Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Tape off module carrier and body components when drilling.
