63 17 070 Removing and installing/replacing left fog light (LCI from 04/2012)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

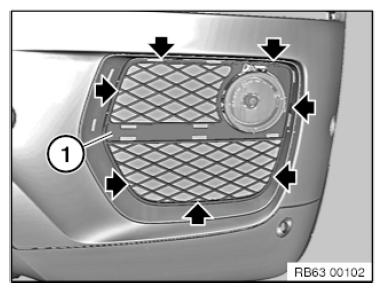

Unclip catches at points marked by arrow with special tool 00 9 323 . Pull cover (1) towards front.

Installation note:

Latch mechanisms must not be damaged

Fig 1: Locating Cover Catches Points

Courtesy of BMW OF NORTH AMERICA, INC.

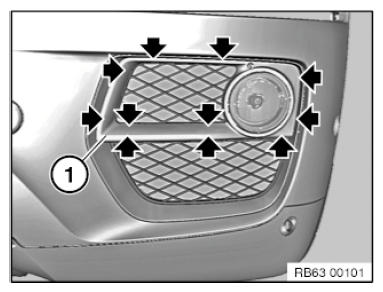

Unclip catches at points marked by arrow with special tool 00 9 323 . Pull ornamental grille (1) towards front.

Installation note:

Latch mechanisms must not be damaged

Fig 2: Locating Cover Catches Points

Courtesy of BMW OF NORTH AMERICA, INC.

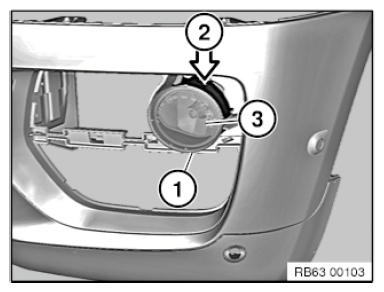

Disconnect plug connection (1). Press clamp (2) in direction of arrow. Remove fog light (3) towards front.

Installation note:

Make sure fog light (1) is correctly seated.

Fig 3: Identifying Plug Connection, Clamp And Fog Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULB .

Adjust FRONT FOG LAMPS .
