37... Overview of 2-axle ride-height control

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

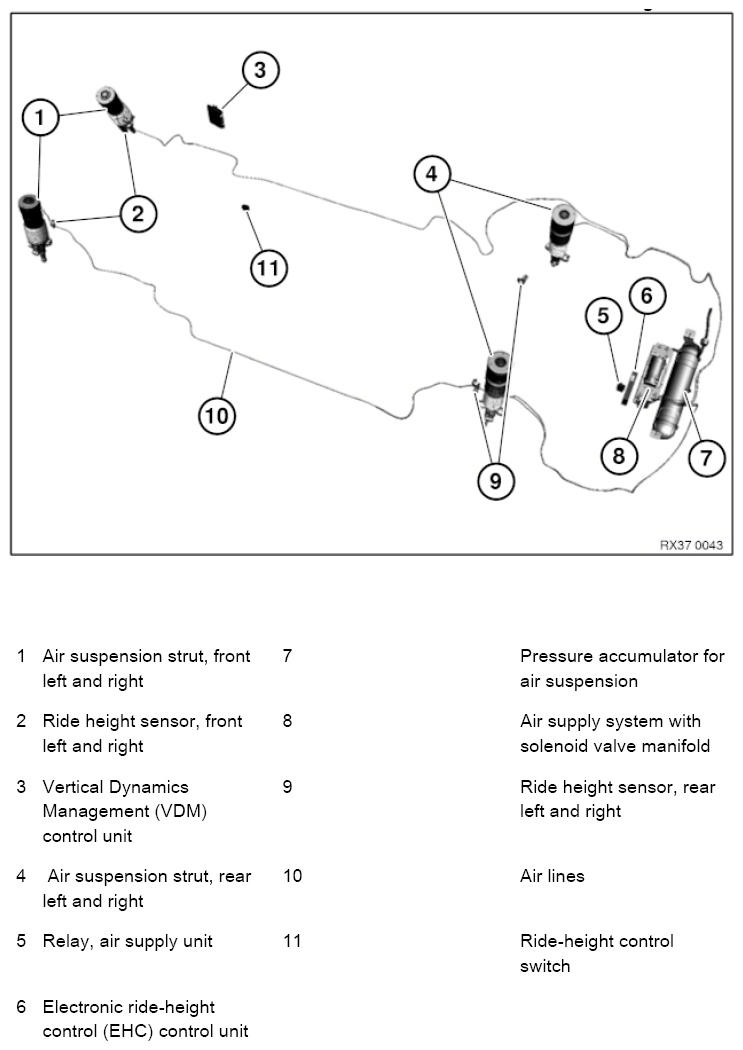

Fig 1: Identifying 2-Axle Ride-Height Control
G08577925Courtesy of BMW OF NORTH AMERICA, INC.
