52 16... Replacing padding for front seat thigh support

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Installation:

Insert screws (1) with Loctite.

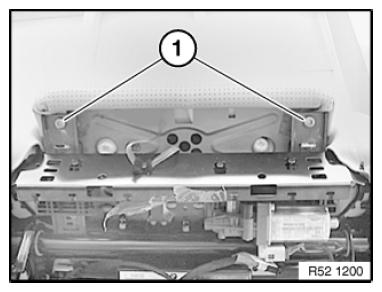

Fig 1: Identifying Front Seat Thigh Support Padding Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook seat cover (1) from marked area.

Remove carrier (2) for thigh support.

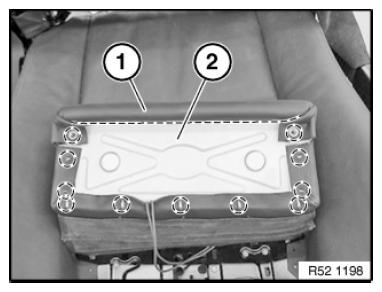

Fig 2: Identifying Seat Cover And Thigh Support Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

For seat heating optional extra only:

Carefully detach felt (1) from thigh support.

Unfasten plug connection (2) and disconnect.

Installation:

Ensure correct cable routing.

Remove padding from cover.

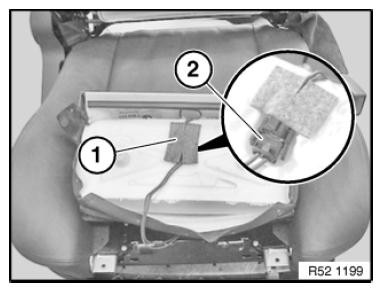

Fig 3: Identifying Plug Connection And Felt Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.
