52 16... Removing and installing/replacing thigh support holder on front seat, left or right (sports/electric)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move thigh support forwards fully

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Installation note:

Insert screws (2) with Loctite.

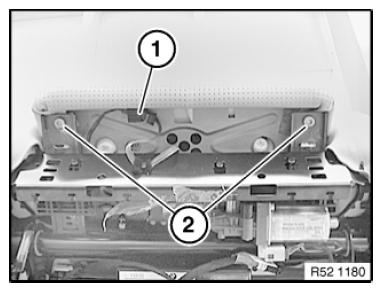

Fig 1: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach seat cover (1) in marked area from carrier (2) for thigh support.

Feed plug out of carrier (2) for thigh support.

Remove carrier (2) for thigh support.

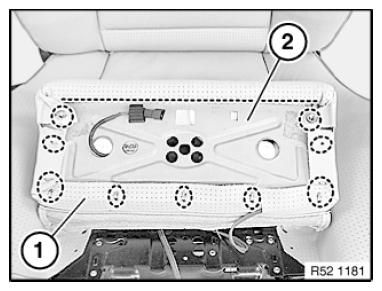

Fig 2: Identifying Seat Cover And Thigh Support Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
