52 13 405 Replacing backrest cover for left or right front seat (normal/semi-electric)

Special tools required:

• 00 9 317
• 52 0 050

Necessary preliminary tasks:

• Remove FRONT SEAT
• Remove REAR PANEL  on front seat backrest

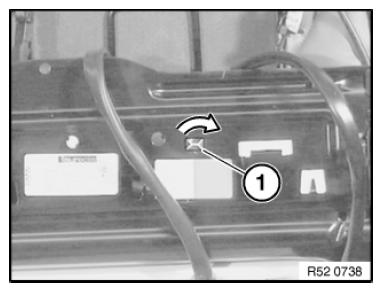

Detach plug connection (1) by twisting from backrest frame.

Disconnect plug-in connection.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

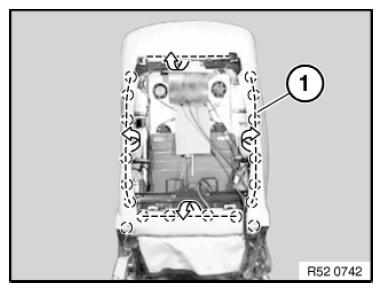

Release all clamps (1) on cover.

Remove cover.

Fig 2: Identifying Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

For climate control optional equipment only:

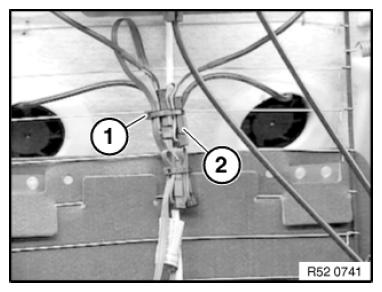

Detach cable strap (1) a wiring harness for fan.

Disconnect plug connections (2).

Fig 3: Identifying Cable Strap And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

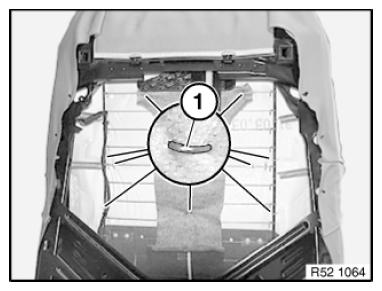

Unhook backrest cover at attachment points in area (1).

Fig 4: Disconnecting Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

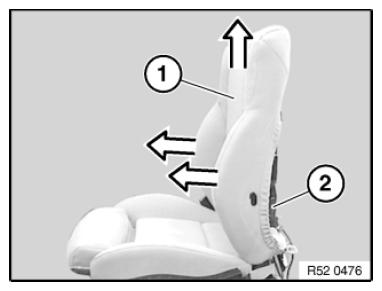

Unhook backrest cover (1) at bottom and sides towards front.

Pull off backrest cover (1) with upholstery towards top from backrest frame (2).

Fig 5: Pulling Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

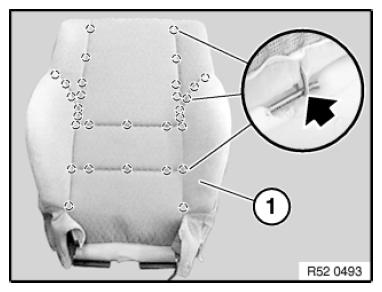

Release all clamps.

Remove backrest cover (1) from upholstery.

Remove all remnants of clips from backrest cover (1) and upholstery.

Fig 6: Locating Backrest Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

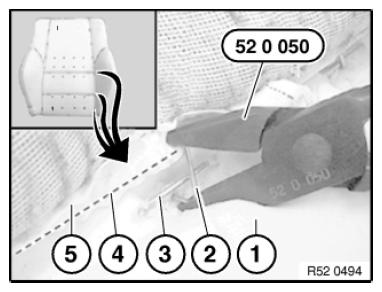

Bend new clamp (2) 52 0 050 closed with pliers.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in backrest cover
5. Backrest cover
   Fig 7: Bending Clamp Closed Using Plier

   Courtesy of BMW OF NORTH AMERICA, INC.

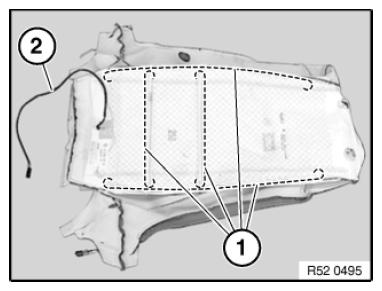

Remove trim wires (1) from backrest cover.

(2) Seat heater cable

Installation note:

Push trim wires (1) into new backrest cover.

If necessary, cut into new part.

Fig 8: Identifying Backrest Cover And Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

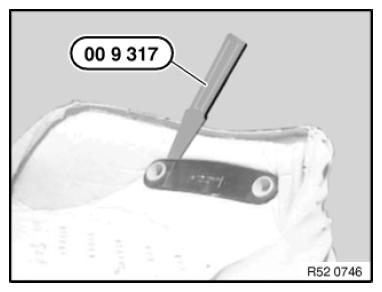

Lever out locking strip of head restraint guide with special tool 00 9 317 .

Installation note:

Mount straight front face of head restraint guide towards front.

Fig 9: Removing Head Restraint Guide Locking Strip Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
