52 14 041 Removing and installing inner cover on left or right front seat

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT

Release screw (1).

Fig 1: Identifying Front Seat Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Cover is secured by guide (2) in bore hole (1).

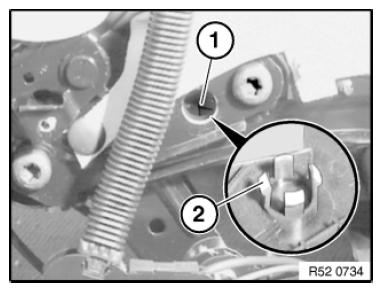

Fig 2: Identifying Bore Hole And Guide Cover

Courtesy of BMW OF NORTH AMERICA, INC.
