52 16 392 Removing and installing/replacing front left or right crash-active headrest

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling may result in triggering of the crash-active headrest and thereby cause injury.

Switch off the ignition!

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE
Remove REAR PANEL

Unlock PLUG CONNECTION (1) and disconnect.

Feed out wiring harness from head restraint height adjustment and foam material.

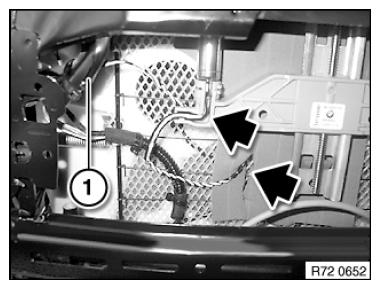

Fig 1: Identifying Head Restraint Height Adjustment Wiring Harness

G08573522

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out retaining clips (1)

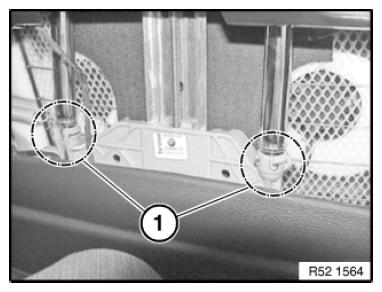

Fig 2: Identifying Retaining Clips

G08573523

Courtesy of BMW OF NORTH AMERICA, INC.

On vehicles from version 04/2010:

Loosen the retaining screw (1) from the head restraint (2).

Tightening torque 52 10 11AZ .

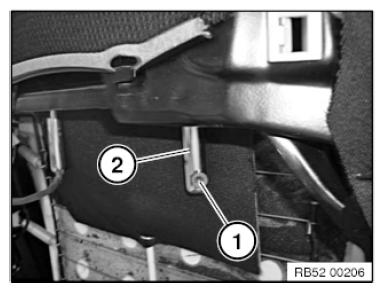

Fig 3: Identifying Head Restraint And Retaining Screw

G08573524

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

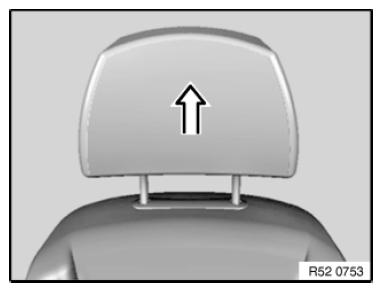

Fig 4: Lifting Out Head Restraint

G08573525

Courtesy of BMW OF NORTH AMERICA, INC.
