41 14 511 Replacing Complete Rear Left Wheel Arch (Rear Left Side Wall Removed)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work :

DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INFORMATION for handling hybrid cars

Read contents of BODY .

Spot-weld bonding is used on this vehicle. Observe specific procedure. See SPOT-WELD BONDING STEEL COMPONENTS and OPENING ADHESIVE BONDS .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Outer wheel arch section, rear
(2) Reinforcement, C-pillar, bottom
(3) Rear wheel arch
(4) Reinforcement, D-pillar, inner
(5) C-pillar reinforcement
(6) Shaped parts, wheel arch (not pictured)
(7) Shaped part, D-pillar, outer

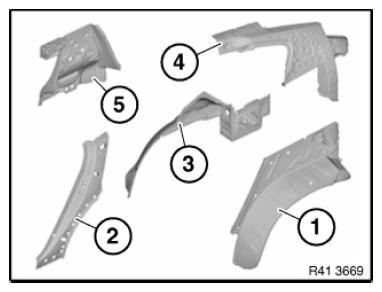

Fig 1: Identifying Outer Wheel Arch Section, Reinforcement, Rear Wheel Arch, C-Pillar Reinforcement And Shaped Parts
Courtesy of BMW OF NORTH AMERICA, INC.

Removing the wheel arch:

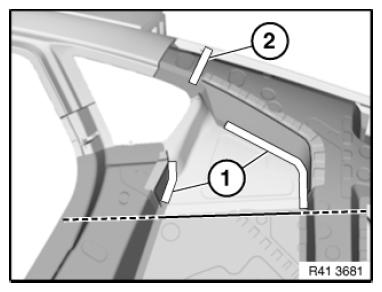

Fig 2: Identifying C-Pillar Reinforcement Cut Line, Welded Connections Areas And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

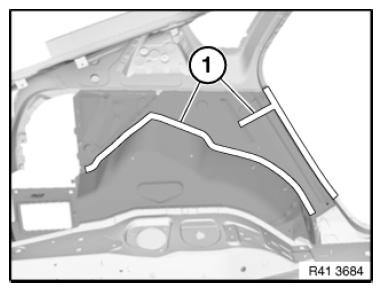

Roughly cut C-pillar reinforcement along line (1).

Open welded connections in areas (2).

Remove sheet section.

Installation note:

Replace both CAVITY SEALING (3).

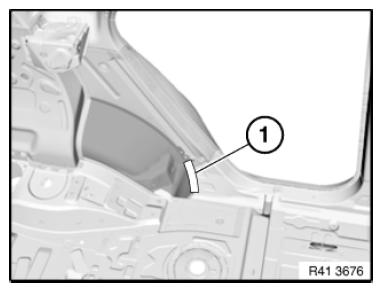

Open welded connections in area (1).

Fig 3: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

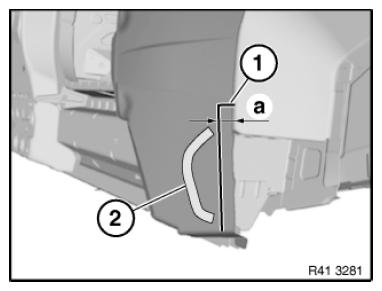

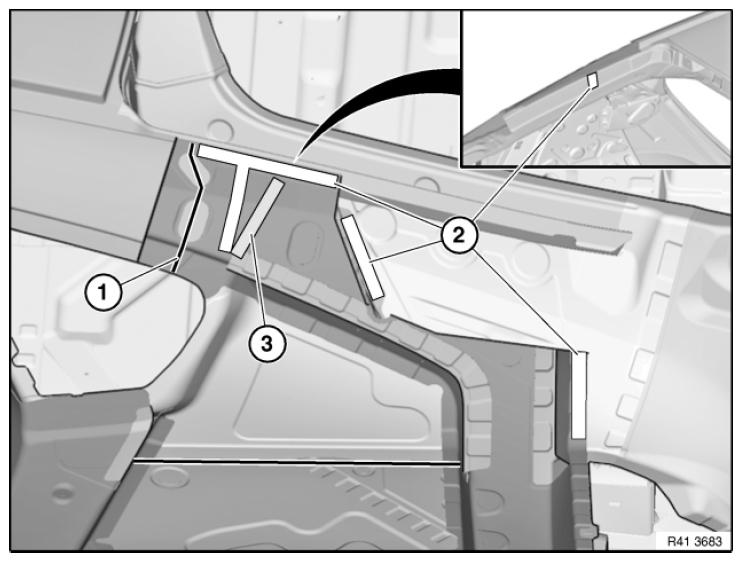

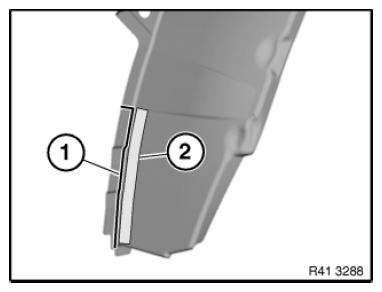

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.

Dimension a = 20 mm

Open welded connections in area (2).

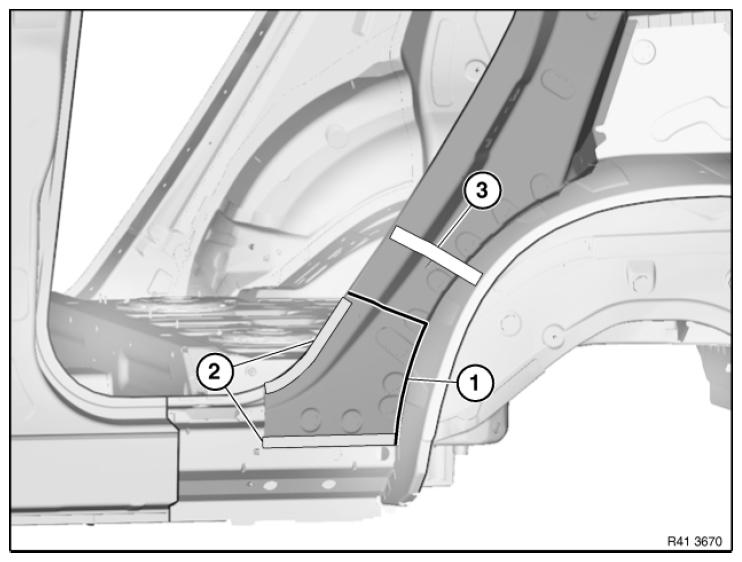

Fig 4: Identifying Severance Cut And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

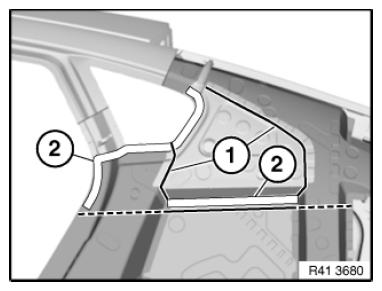

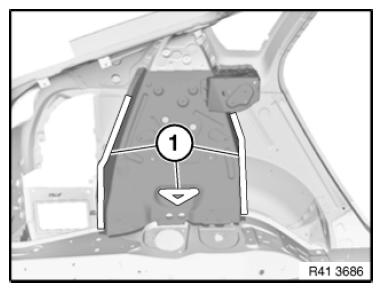

Open welded connections in area (1).

Fig 5: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

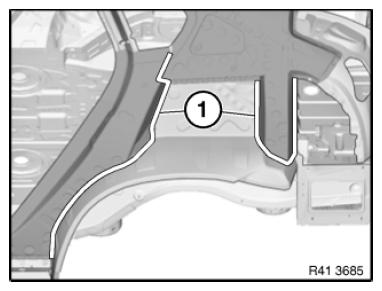

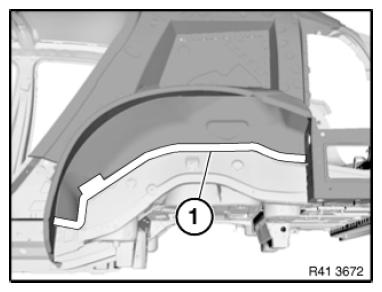

Roughly cut rear wheel arch along line (1).

Fig 6: Identifying Rear Wheel Arch Cut Line

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Roughly cut rear wheel arch along line (2).

Remove wheel arch section.

Fig 7: Identifying Welded Connections Areas And Rear Wheel Arch Cut Line

Courtesy of BMW OF NORTH AMERICA, INC.

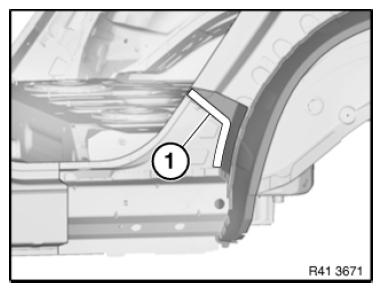

Open welded connections in area (1).

Fig 8: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from vehicle interior:

Open welded connections in area (1).

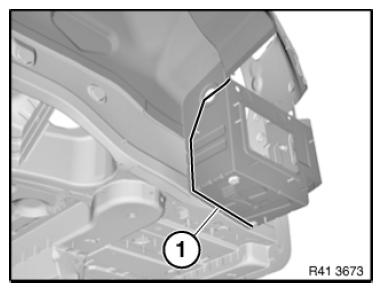

Fig 9: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

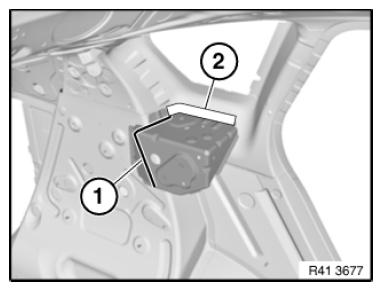

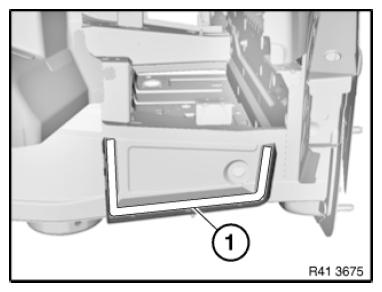

Roughly cut mounting for automatic reel unit along line (1).

Open welded connections in area (2).

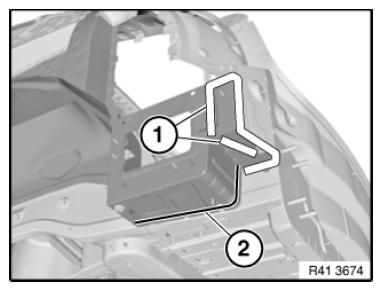

Fig 10: Identifying Automatic Reel Unit Cut Mounting Line And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

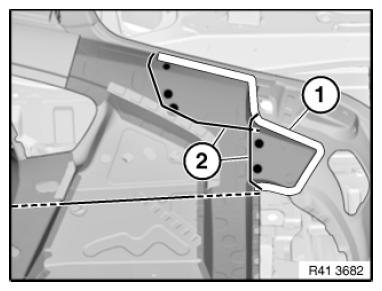

Fig 11: Identifying C-Pillar Reinforcement Cut Lines And Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

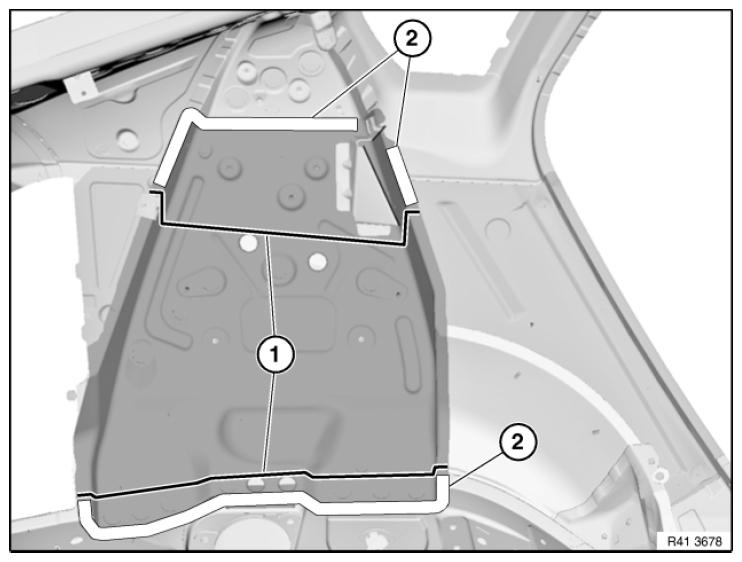

Roughly cut C-pillar reinforcement along lines (1).

Open welded connections in areas (2).

Remove sheet sections.

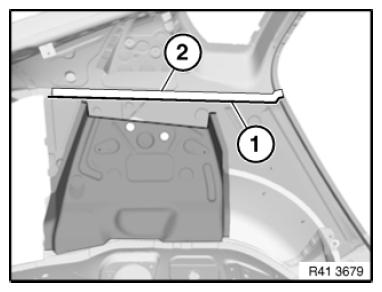

Roughly cut wheel arch along line (1).

Open welded connections in area (2).

Fig 12: Identifying Wheel Arch Cut Line And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

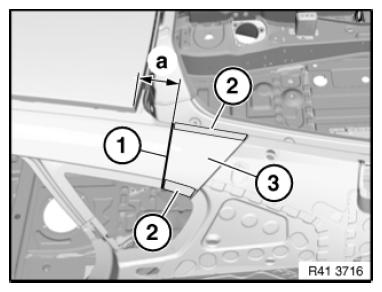

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.

Dimension a = approx. 70 mm from roof edge.

Open welding spot joints in areas (2).

Fig 13: Identifying Severance Cut, Welding Spot Joints Areas And Metal Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Weld in REINFORCEMENT PLATE at severance cut.

Remove metal section (3).

Perform only severance cut (1) on new part.

Roughly mark severance cuts (1) and cut.

Open welded connections in areas (2).

Remove sheet section.

Fig 14: Identifying Severance Cut And Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Installation note:

REPLACE CAVITY SEALING (2).

Fig 15: Identifying Welded Connections Areas And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Roughly mark severance cuts (2) and cut.

Remove sheet sections.

Fig 16: Identifying Welded Connections Area And Severance Cuts

Courtesy of BMW OF NORTH AMERICA, INC.

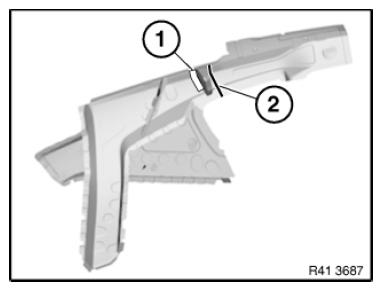

Fig 17: Identifying D-Pillar Reinforcement Cut Line, Welded Connections Areas And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Roughly cut D-pillar reinforcement along line (1).

Open welded connections in areas (2).

Remove remaining parts of wheel arch.

Installation note:

Apply window glass adhesive to CAVITY SEALING (3).

Preparation of new part:

Mark new part (wheel arch outer half) in accordance with severance cut on vehicle + 20 mm extra material and cut (1).

Weld new part in area (2) overlapping.

Fig 18: Identifying Extra Material Cut Area And Weld Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1) and remove bulkhead plate.

Mark severance cut (2) in accordance with body and cut.

Fig 19: Identifying Weld Joints Area And Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the wheel arch:

Adjust new components in conjunction with side wall to fit with straightening attachment or universal mount.

Welding new parts.

Weld new components in areas (1) additionally.

Fig 20: Identifying Weld Components Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new components in areas (1) additionally.

Fig 21: Identifying Weld Components Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new components in areas (1) additionally.

Fig 22: Identifying Weld Components Areas

Courtesy of BMW OF NORTH AMERICA, INC.
