41 14 503 Replacing Rear Right Outer Wheel Arch Section (Rear Right Side Panel Removed)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work :

DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INFORMATION for handling with hybrid cars

Read contents of BODY .

Spot-weld bonding is used on this vehicle. Observe specific procedure. See SPOT-WELD BONDING STEEL COMPONENTS and OPENING ADHESIVE BONDS .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Wheel arch, rear, outer half
(2) Reinforcement, C-pillar, bottom
(3) Shaped parts, wheel arch (not pictured)

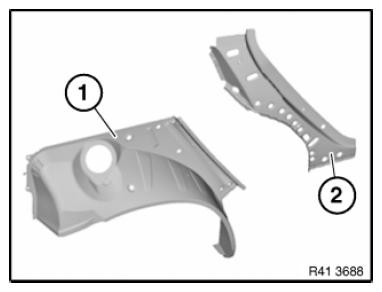

Fig 1: Identifying Outer Half Wheel Arch And Reinforcement
Courtesy of BMW OF NORTH AMERICA, INC.

Removing the outer wheel arch section:

REMOVE CAVITY SEALING (1).

Open welded connections in area (2).

Remove reinforcement on C pillar.

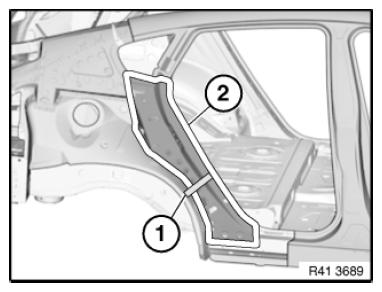

Fig 2: Identifying Cavity Sealing And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with measurement and cut.

IMPORTANT: Cut outer panel only.

Measurement a = 20 mm

Open welded connections in area (2).

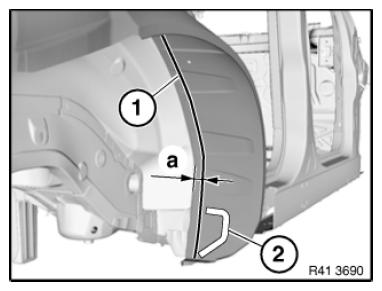

Fig 3: Identifying Severance Cut And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

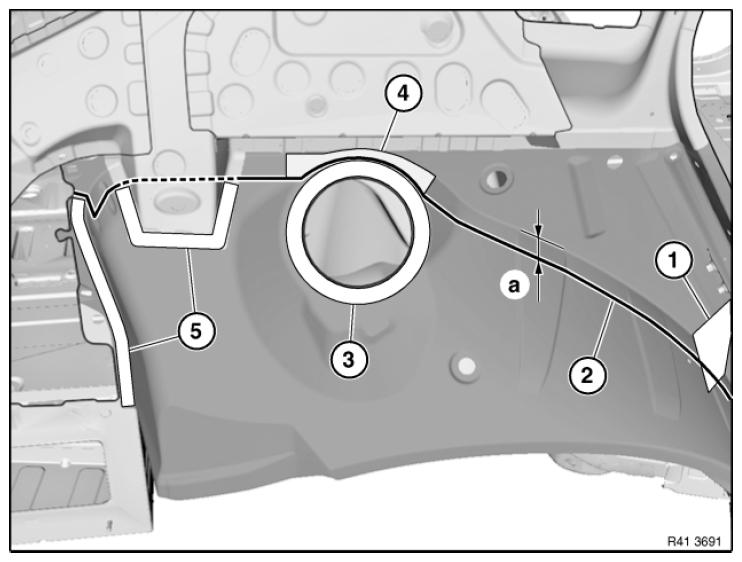

Fig 4: Identifying Cavity Sealing, Severance Cut, Severance Cut Area, Component Shape Area And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

REMOVE CAVITY SEALING (1).

Mark severance cut (2) in accordance with measurement and cut.

Measurement a = 20 mm distance from radius.

IMPORTANT: Severance cut in area (3) not permitted!
Adapt measurement a to component shape in area (4).
Open welded connections in area (5).
Remove section for outer wheel arch section.

New part preparation:

Mark new part in radius (1) and cut.

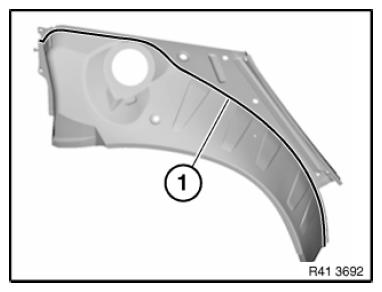

Fig 5: Identifying Cut Radius

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the outer wheel arch section:

Fit new part from below and adjust to fit in conjunction with side panel.

Weld new part.
