41 14 502 Replacing Rear Left Outer Wheel Arch Section (Rear Left Side Wall Removed)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work :

Disconnect HIGH-VOLTAGE SYSTEM FROM POWER
Observe SAFETY INSTRUCTIONS for handling with hybrid cars

Read contents of BODY .

Spot-weld bonding is used on this vehicle. Observe specific procedure. See SPOT-WELD BONDING STEEL COMPONENTS and OPENING ADHESIVE BONDS .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

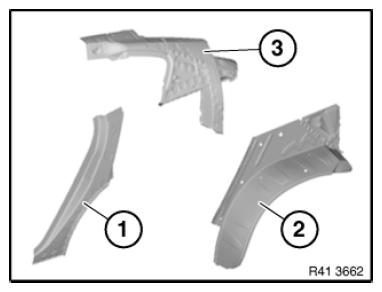

(1) Reinforcement, C-pillar, bottom
(2) Wheel arch, outer, rear
(3) Reinforcement, D-pillar, inner
(4) Shaped parts, wheel arch (not pictured)

Fig 1: Identifying C-Pillar Reinforcement, Wheel Arch And D-Pillar Reinforcement
Courtesy of BMW OF NORTH AMERICA, INC.

Removal of the outer wheel arch section:

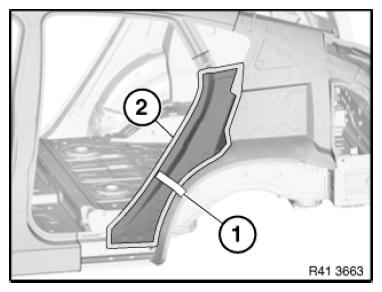

REMOVE CAVITY SEALING (1).

Open welded connections in area (2).

Remove reinforcement on C-pillar.

Fig 2: Identifying Cavity Sealing And Welded Connections Area

G08578201

Courtesy of BMW OF NORTH AMERICA, INC.

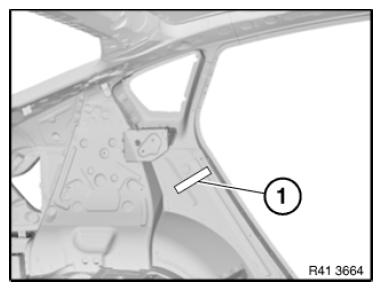

Open welded connections in area (1).

Fig 3: Identifying Welded Connections Area

G08578202

Courtesy of BMW OF NORTH AMERICA, INC.

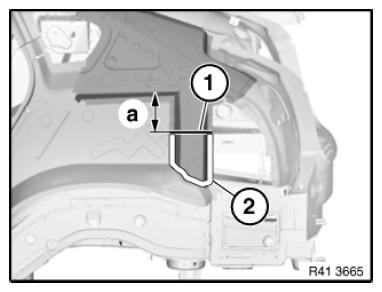

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.

Dimension a = approx. 150 mm from lower edge of D-pillar reinforcement.

Open welded connections in area (2).

Remove D-pillar reinforcement section.

Installation note:

Fig 4: Identifying Severance Cut And Welded Connections Area

G08578203

Courtesy of BMW OF NORTH AMERICA, INC.

Weld in REINFORCEMENT PLATE at severance cut.

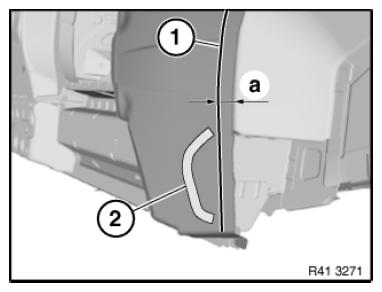

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.

Dimension a = 20 mm

Open welded connections in area (2).

Fig 5: Identifying Severance Cut And Welded Connections Area

G08578204

Courtesy of BMW OF NORTH AMERICA, INC.

REMOVE CAVITY SEALING (1).

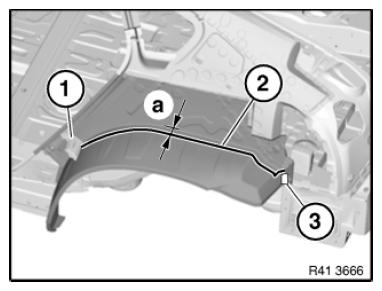

Mark severance cut (2) in accordance with specified dimension and cut.

Dimension a = 20 mm distance from radius.

Open welded connections in area (3).

Remove section for outer wheel arch section.

Fig 6: Identifying Cavity Sealing, Severance Cut And Welded Connections Area

G08578205

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation:

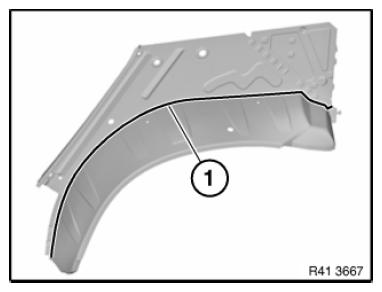

Mark new part in radius (1) and cut.

Fig 7: Identifying Wheel Arch Radius

G08578206

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of outer wheel arch section:

Fit new part from below and adjust to fit in conjunction with side wall.

Weld new part.
