41 11 015 Replacing Left Engine Support With Wheel Arch

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work :

DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS for handling with hybrid cars

Read contents of BODY .

Steel-aluminium composite construction is used on the vehicle.

Observe specific PROCEDURE .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only APPROVED SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

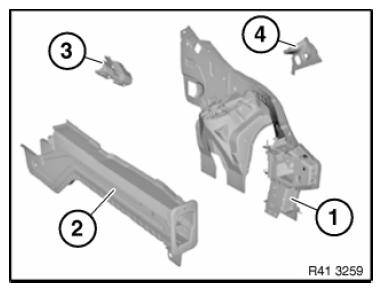

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Wheel arch, front
(2) Engine carrier
(3) Support, wheel arch
(4) Reinforcement, support carrier

Fig 1: Identifying Wheel Arch, Engine Carrier, Support And Reinforcement
Courtesy of BMW OF NORTH AMERICA, INC.

Removal of engine support with wheel arch:

Open welded connections in area (1).

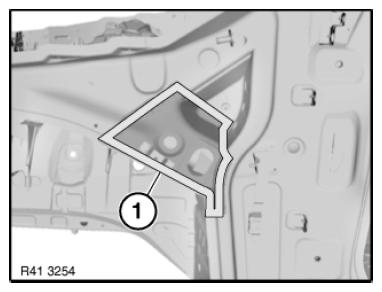

Fig 2: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with measurement a and cut carrier support.

Measurement a=50 mm before 20 mm dia. bore

Open welded connections in area (1).

Installation note:

Weld in REINFORCEMENT PLATE at severance cut.

Fig 3: Identifying Welded Connections Area And Bore Measurement

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Fig 4: Identifying Engine Support Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

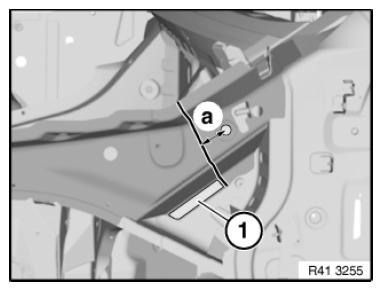

Mark severance cut (1) in accordance with dimension a and cut engine support.

Measurement a=50 mm before 20 mm dia. bore

Open welded connections in area (2).

Installation note:

Weld in REINFORCEMENT PLATE at severance cut.

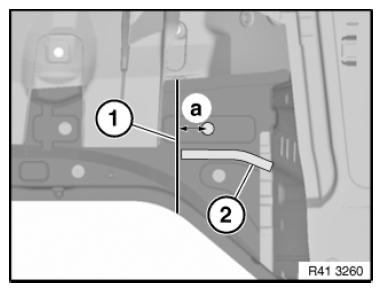

Fig 5: Identifying Severance Cut And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

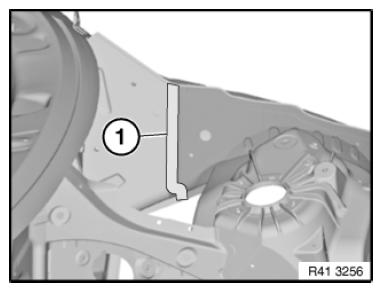

Open welded connections in area (1).

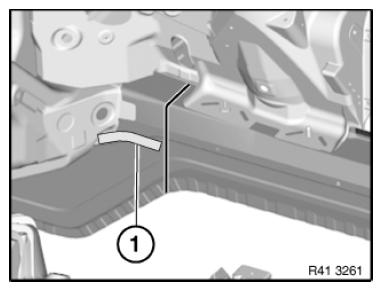

Fig 6: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

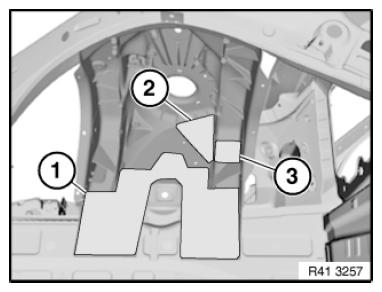

Drill out rivet connections in area (2).

Open ADHESIVE JOINTS in areas (2) and (3).

Remove engine support with wheel arch.

Fig 7: Identifying Rivet Connections Area And Adhesive Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation:

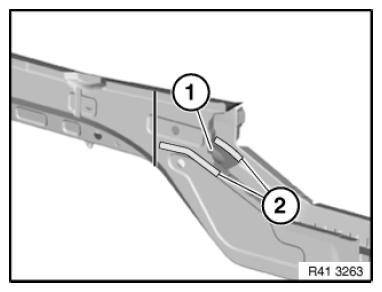

Mark engine carrier in accordance with severance cut on vehicle and cut.

IMPORTANT: Cut outer panel only.
Do not cut through reinforcement (1).

Cut weld joints on both sides in areas (2).

Fig 8: Identifying Reinforcement And Weld Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid contact corrosion, do not grind the aluminium component in the area of the BONDING SURFACES .

Adjust new parts to fit with alignment bracket or universal mount and secure.

Make 19 bore holes Ø 6.8 mm for BLIND RIVETS N2 (size 815) in area (1).

Make 4 bore holes Ø 6.8 mm for blind rivets N2 (size 815) in area (2).

Remove new wheel arch part again and deburr holes.

Fig 9: Identifying Rivet Connections Area And Adhesive Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of engine support with wheel arch:

Weld new engine support part.

Clean bonding surfaces in areas (1) to (3) with CLEANING AGENT R1 .

APPLY ADHESIVE K1 to bonding surfaces.

Install new wheel arch part with alignment bracket or universal mount.

Rivet new parts in areas (1) and (2).

Fig 10: Identifying Rivet Connections Area And Adhesive Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

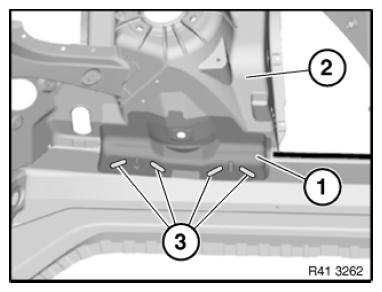

Also weld wheel arch support (1) in areas (3).

IMPORTANT: Risk of damage to adhesive strip with wheel arch (2)!
Avoid excessive application of heat.

Fig 11: Identifying Weld Wheel Arch Support Areas And Adhesive Strip With Wheel Arch

Courtesy of BMW OF NORTH AMERICA, INC.

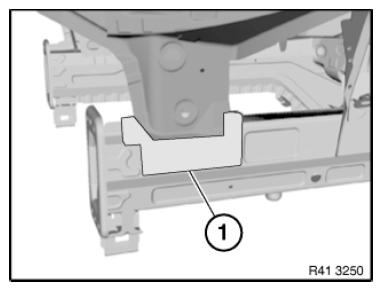

Weld new components in area (1) additionally.

Fig 12: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

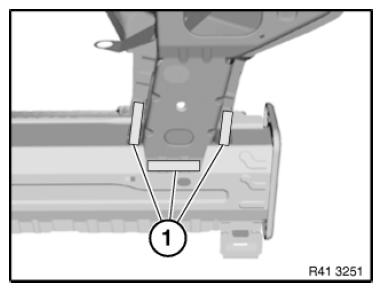

Weld new components in areas (1) additionally.

Fig 13: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.
