41 35 575 Removing And Installing/Replacing Front Left Side Panel Module Carrier
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove front side panel
- Remove AIRBAG SENSOR

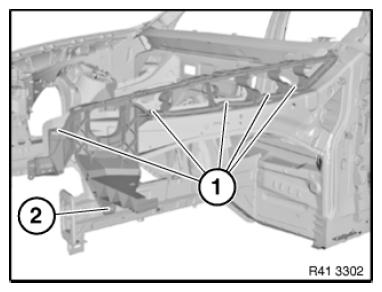

Release screws (1).
Tightening torque 41 35 10AZ .
Slacken nut (2).
Tightening torque 41 35 11AZ .
Remove module carrier.
