41 34 060 Replacing Complete Tail Panel Stripping-Down Operations

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work :

DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INFORMATION for handling with hybrid cars

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove battery
Remove bumper trim
Remove bumper support
Remove center guide
Remove luggage compartment floor trim panel
Remove lashing rail in luggage compartment floor on left and right
Remove luggage compartment storage compartment
Remove tail panel cover at top
Remove tailgate lock
Remove left luggage compartment wheel arch panel
Remove right luggage compartment wheel arch panel
Partially detach tailgate seal

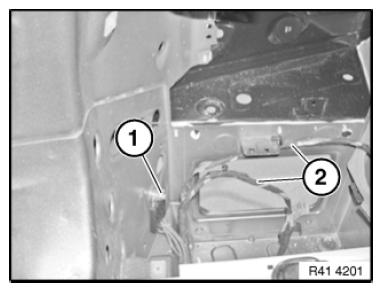

Slacken nut (1).

Remove ground support point.

Unclamp wiring harness (2) from clamps and lay towards front.

Fig 1: Identifying Slacken Nut And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

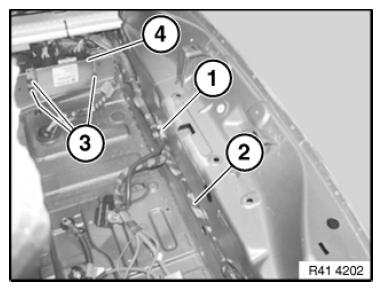

Slacken nut (1).

Remove ground support point.

Unclamp wiring harness (2) from tail panel and lay towards front.

Release nuts (3) and lay control unit (4) towards front.

Fig 2: Identifying Slacken Nut, Tail Panel Wiring Harness, Nuts And Lay Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

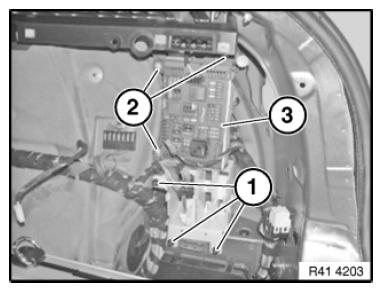

Release nuts (1) and screws (2).

Lay power distribution box (3) towards front.

Fig 3: Identifying Power Distribution Box, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
