41 34 038 Replacing Outer Tail Panel Section Stripping-Down Operations
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
WARNING:
The following points must be strictly observed prior to starting work
:
- DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
- Observe SAFETY INFORMATION for handling with hybrid cars
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Remove bumper trim
- Remove bumper support
- Remove center guide
- Upper tail panel trim
- Partially detach tailgate seal
NOTE:
Operation is described on the left side. Right side identical.

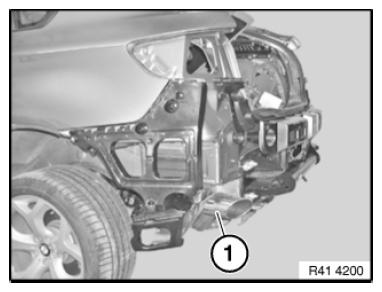

Remove cover (1).
Installation note:
Fit cover (1) before fitting the bumper trim.
