41 52 101 Replacing Rear Left Or Right Door

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY .

Necessary preliminary work:

Remove REAR DOOR

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Door, rear
(2) Crash reinforcement

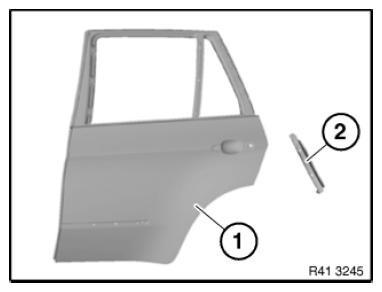

Fig 1: Identifying Rear Door And Crash Reinforcement
Courtesy of BMW OF NORTH AMERICA, INC.

Feed in crash reinforcement (1).

Tighten down screws (2).

Tightening torque 41 52 5AZ .

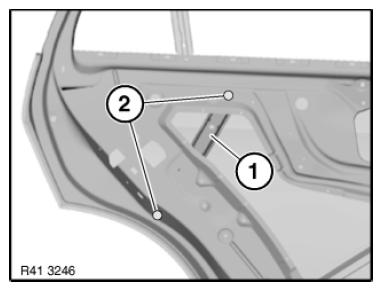

Fig 2: Identifying Crash Reinforcement And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
