41 5.... Removing And Installing Door

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body parts.

The illustrations are schematic representations and are to be applied to the relevant vehicle type.

Open door.

Release screw on connector frame.

Front door:

Tightening torque 41 51 4AZ .

Rear door:

Tightening torque 41 52 4AZ .

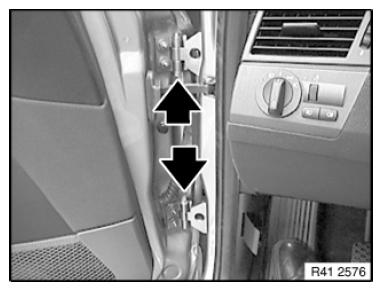

Fig 1: Locating Frame Connector Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure door against closing.

Release screw (1) on door retainer.

Front door:

Tightening torque 51 21 3AZ .

Rear door:

Tightening torque 51 22 3AZ .

Open door up to stop.

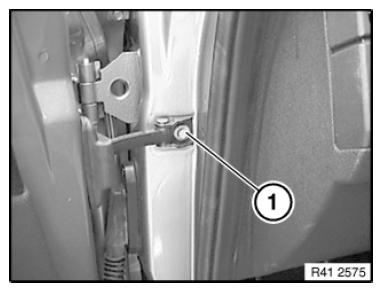

Fig 2: Identifying Door Retainer Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts between both hinge elements

at top and bottom.

Front door:

Tightening torque 41 51 1AZ .

Rear door:

Tightening torque 41 52 1AZ .

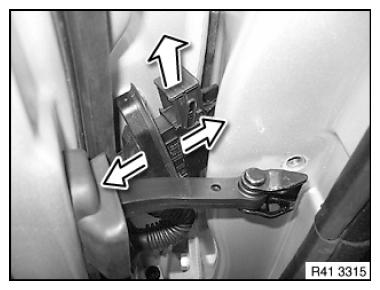

Fig 3: Releasing Nuts Between Both Hinge Elements At Top And Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Pull plug connection from door pillar, unlock by pulling out bar and detach.

Unhinge door by moving upwards and placing it on a suitable surface.

Installation:

If necessary, adjust DOOR .

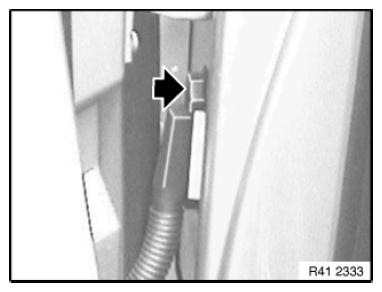

Fig 4: Pulling Plug Connection From Door Pillar

Courtesy of BMW OF NORTH AMERICA, INC.
