41 31 010 Replacing Outer Roof Skin (Version With Slide/Tilt Sunroof)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:

De-energize the HIGH-VOLTAGE SYSTEM .
Observe SAFETY INFORMATION for handling electric vehicles.

Read contents of BODY .

STRIP DOWN VEHICLE

Observe (REPAIR STAGE 2) procedure!

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Roof outer skin, slide/tilt sunroof

Following CONSUMABLES are required:

Material	Quantity
Adhesive K5b	2
Punch rivets N4	14
EMC screws	2
Cleaning agent R1	1
Sealant D1

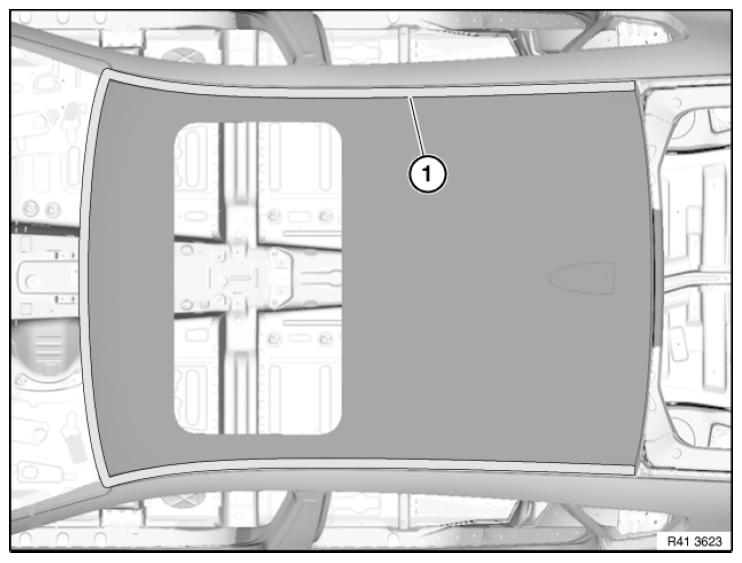

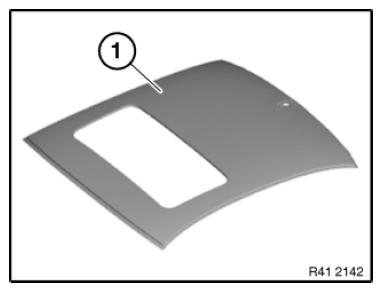

Fig 1: Identifying Roof Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.

Tools also required:

Roof pliers set, order number: 81 43 2 158 707
Sourcing reference:

BMW Workshop Equipment Catalogue

Removing roof outer skin:

Operation is described on the left side. Right side identical.

Open brazed joints in areas (1).

Open spot-weld bonded joints in areas (2).

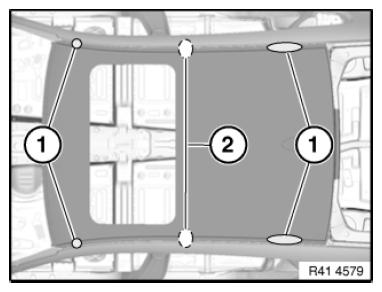

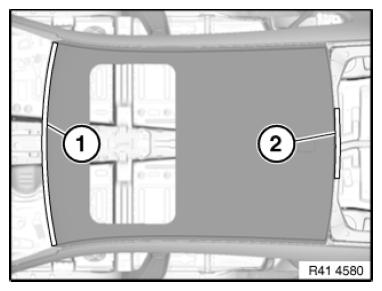

Fig 2: Identifying Brazed Joints Areas And Spot-Weld Bonded Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

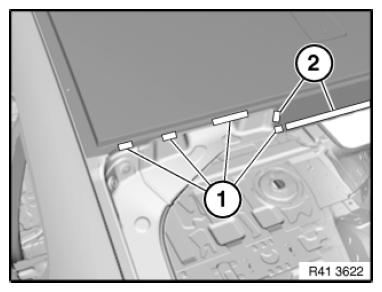

Fig 3: Identifying Spot-Welded Adhesive Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open spot-welded adhesive joints in area (1)

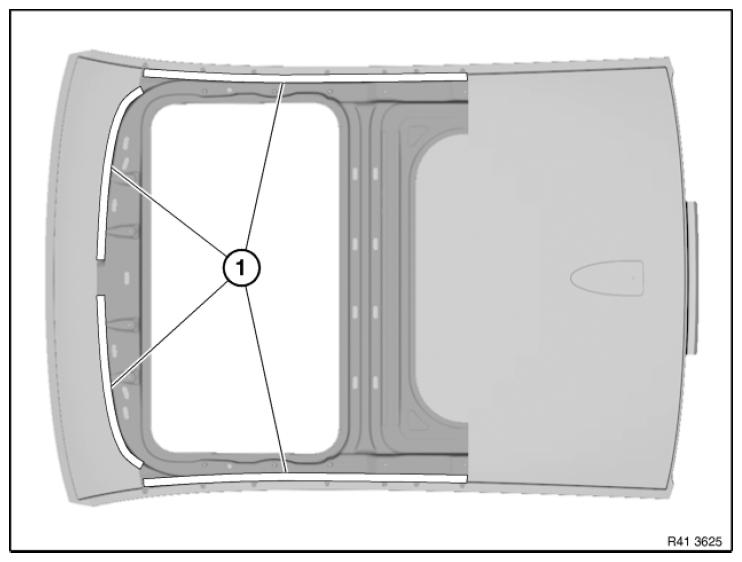

Fig 4: Identifying Bonded Connection (Sealant) Area

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown without roof outer skin for purposes of clarity.
Detach bonded connection (1) (sealant) and remove roof outer skin.

New part preparation:

If necessary, place roof outer skin in position and fit in conjunction with roof outer skin.

Take off roof outer skin.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Installing roof outer skin:

Clean all bonding surfaces on vehicle and on new part with cleaning agent R1.

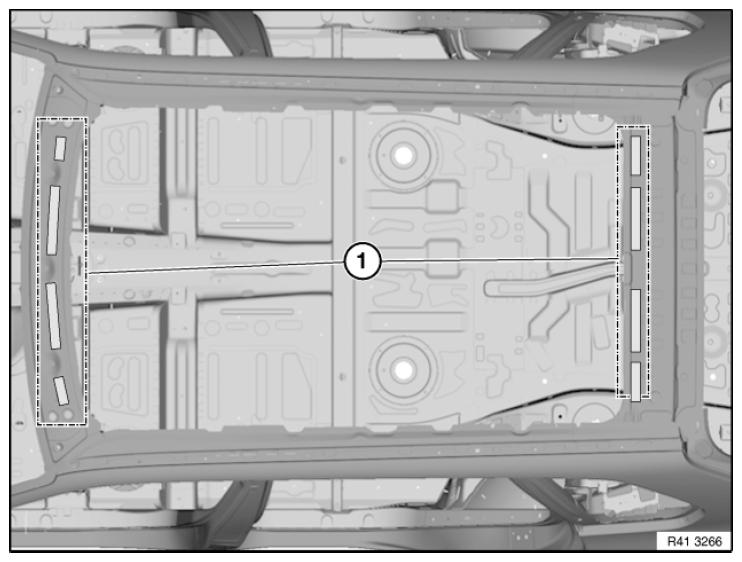

Fig 5: Identifying Adhesive Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive in areas (1).

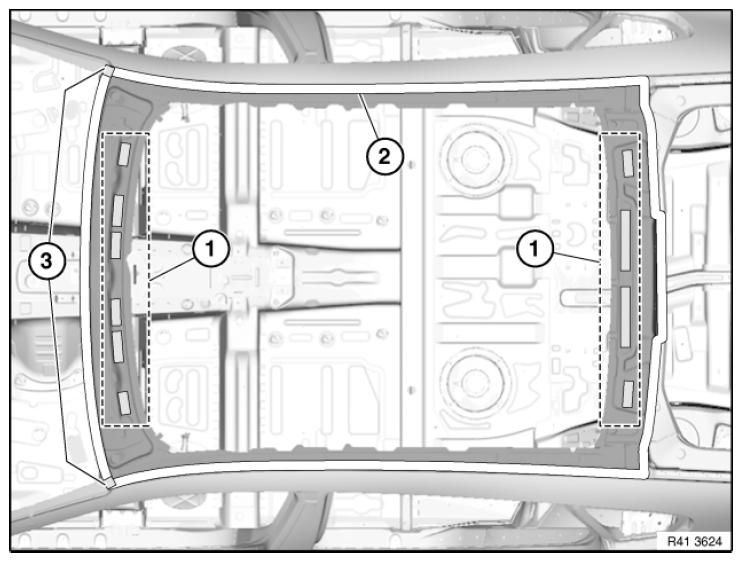

Fig 6: Identifying Sealant Areas, Adhesive Areas And A-Pillar Adhesive Nodes

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealant in areas (1) analogously to Series.

Apply adhesive in areas (2).

Apply a little more adhesive to nodes (3) of A-pillar.

NOTE: Excess material is later used for spreading to side frame.

Place roof outer skin with helpers evenly and centrally on vehicle.

For positioning, set up roof drip moldings and windscreen.

Fig 7: Identifying Roof Pliers And Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Mount roof pliers (1) and secure with tensioning strap (2).

NOTE: Pictured on version without slide/tilt sunroof.

NOTE: To generate an optimum contact pressure, mount roof pliers according to the graphics as left.

Fig 8: Identifying Roof Pliers (Version Without Slide/Tilt Sunroof)

Courtesy of BMW OF NORTH AMERICA, INC.

Fix roof outer skin in areas (1) with M8 screws.

(2) Roof pliers with tensioning strap.

NOTE: When inserting screws, make sure no adhesive gets into the screwed joint!

Fig 9: Identifying Roof Outer Skin Areas With Screws And Roof Pliers With Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) rivet roof outer skin with 7 N4 punch rivets.

Set punch rivets in corners starting at a distance of approx. 200 mm.

Use 7 punch rivets N4 in area (2).

Fig 10: Rivet Roof Outer Skin Area And Punch Rivets N4 Area

Courtesy of BMW OF NORTH AMERICA, INC.

Adapt step (1) between roof outer skin (2) and A-pillar with emerging adhesive. Remove excess adhesive.

IMPORTANT: Do not use any cleaning agents containing solvents.

Do not leave any traces of sharp edges as this could compromise the tightness of the subsequent bond.

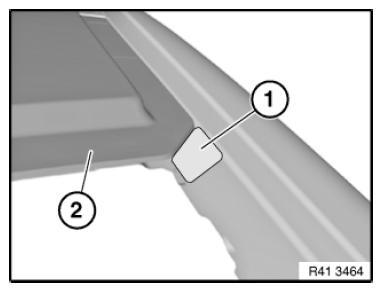

Fig 11: Identifying Adapt Step And Roof Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Spread excess adhesive in roof trim strip channel. Mounting surfaces of clips for roof trim strips must not be moistened with adhesive.

Operation is described on the left side. Right side identical.

Fit an EMC SCREW after adhesive has hardened in area (1).

In so doing, bear in mind subsequent fitting of roof trim strip!

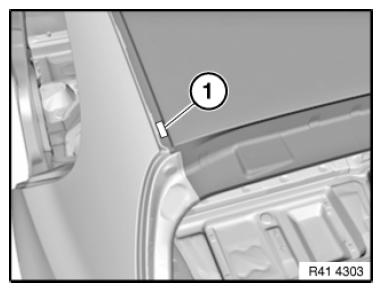

Fig 12: Identifying EMC Screw Adhesive Hardened Area

Courtesy of BMW OF NORTH AMERICA, INC.
