41 63 000 Removing And Installing Flap For Fuel Filler Neck
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Fuel tank is under pressure!

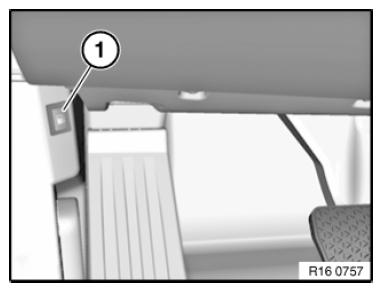

Prior to starting any work on the fuel tank, the refuelling button (1) must be pressed.
Pressing the refuelling button (1) relieves pressure in the fuel tank.
The fuel filler flap can not be opened until the refuelling button (1) is pressed.
Prior to starting any work on the fuel tank, the refuelling button (1) must be pressed.
Pressing the refuelling button (1) relieves pressure in the fuel tank.
The fuel filler flap can not be opened until the refuelling button (1) is pressed.
NOTE:
The graphic shows a schematic representation.

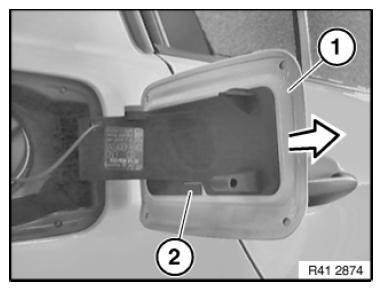

Lever out lock (2) and detach fuel filler flap (1) in direction of arrow.
