41 12 535 Replacing Complete Luggage Compartment Floor Stripping Operations (Tail Panel Removed)
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
WARNING:
The following points must be strictly observed prior to starting work
:
- Disconnect HIGH-VOLTAGE SYSTEM FROM POWER
- Observe SAFETY INFORMATION for handling hybrid cars
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Remove exhaust system (job number: 1800020)
- Remove heat shield
- Remove air supply system (job number: 37 22 540)
- Remove rear left and right wheel arch cover (job number: 51 71 041)
- Remove positive battery cable (job number: 61 12 002)
- Remove high-voltage battery unit (job number: 61 25 010)
- Partially detach wiring harness and lay to one side

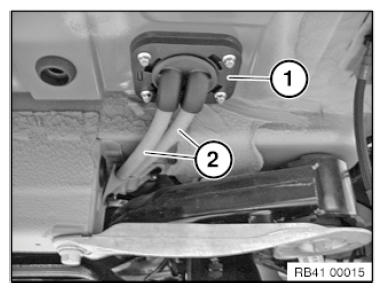

Release nuts for sealing flange connection (1).
Remove sealing flange connection (1) with high-voltage cable (2) and set aside.
Installation note:
Make sure gasket is correctly installed. (watertightness).
Replace gasket if necessary.
Replace self-locking nuts.
Tightening torque 41 12 1AZ .

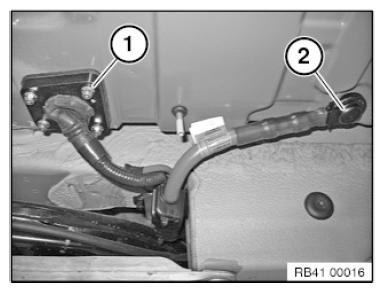

Release nuts for sealing flange connection (1).
Remove sealing flange connection (1) with positive battery cable (2) and set aside.
Installation note:
Make sure gasket is correctly installed. (watertightness).
Replace gasket if necessary.
Replace self-locking nuts.
Tightening torque 41 12 1AZ .
IMPORTANT:
Risk of damage!
Protect high-voltage cable and positive battery cable against mechanical damage.
Protect high-voltage cable and positive battery cable against mechanical damage.
