41 33 040 Replacing Front Left Or Right Side Wall Holder

General information:

Procedure OBSERVE  repair stage 2!

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

• (1) Holder, side wall, front (variant 1)
• (2) Holder, side wall, front (variant 2)

Following CONSUMABLES  are required:

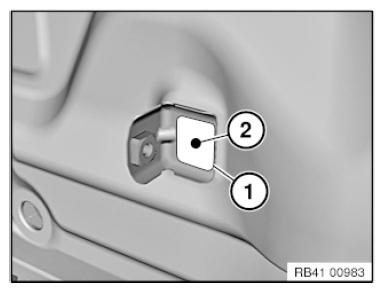

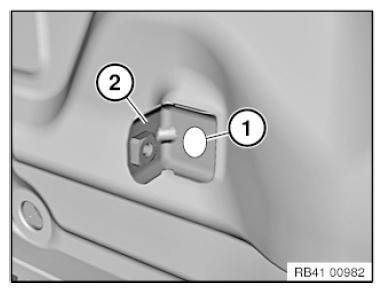

Fig 1: Identifying Front Side Wall Holder (Variant 1 Variant 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of side wall holder (variant 1):

Release welded connections in areas (1) and remove holder (2).

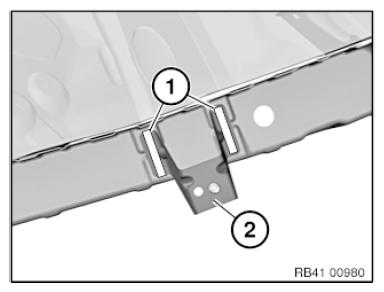

Fig 2: Identifying Welded Connections Areas And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

In area of bonding surfaces (1), set 2 4.2 mm dia. bore holes (2) for blind rivetsN3.

Remove new part and deburr holes.

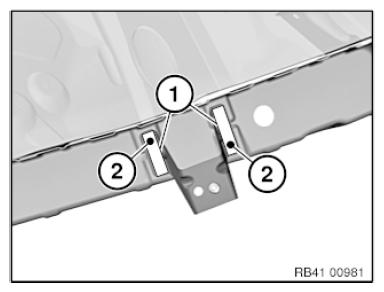

Fig 3: Identifying Bonding Surfaces And Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

Removal of side wall holder (variant 2):

Release welded connection in area (1) and remove holder (2).

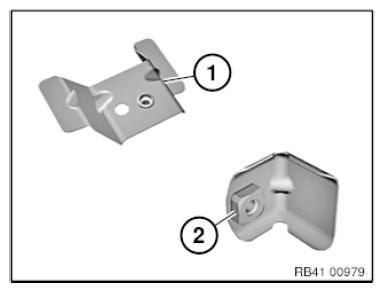

Fig 4: Identifying Welded Connection Area And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

In area of adhesive surface (1), drill a 4.2 mm dia. bore hole (2) for blind rivet N3.

Remove new part and deburr holes.

Fig 5: Identifying Adhesive Surface And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surface.

Install new part and rivet with blind rivet.
