41 61 000 Removing And Installing Hood/Bonnet

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Support engine hood in fully opened position with suitable apparatus.

IMPORTANT: Removal of the hood/bonnet must be carried out with the assistance of a second person.

NOTE: Carry over schematic representation to the relevant vehicle type.

Release nuts (1).

Tightening torque 41 61 1AZ .

Remove hood lid.

Installation:

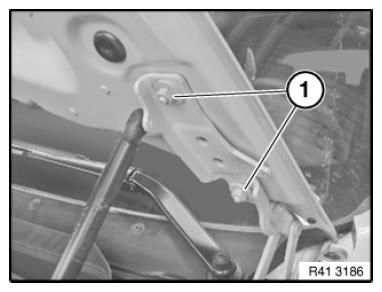

Fig 1: Identifying Nuts Of Hinges On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Install engine hood at screw locations to on hinge. This dispenses with the need for adjustment after installation.

If this is not possible, adjust ENGINE HOOD .
