24 35 650 Replacing wheel speed sensor output (GA7AHSCD)
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage system - danger to life!
NOTE:
Observe SAFETY INSTRUCTIONS
for handling hybrid cars!
IMPORTANT:
After completion of work, check TRANSMISSION OIL LEVEL
.
Use only approved transmission oil: Dexron VI automatic transmission fluid (GM)
Failure to comply with this instruction will result in serious damage to the transmission.
Use only approved transmission oil: Dexron VI automatic transmission fluid (GM)
Failure to comply with this instruction will result in serious damage to the transmission.
Recycling:
Catch and dispose of escaping transmission oil.
Comply with country-specific waste disposal regulations.
Release screw (2), drain transmission oil and catch in a suitable collecting vessel.
Tightening torque 24 00 4AZ

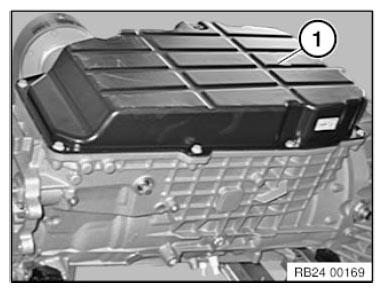

Remove transmission oil sump (1) (10 screws).
Installation note:
Renew oil sump gasket
Tightening torque 24 00 10AZ .

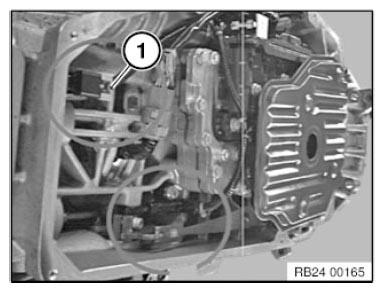

Unlock plug connection (1) and disconnect.

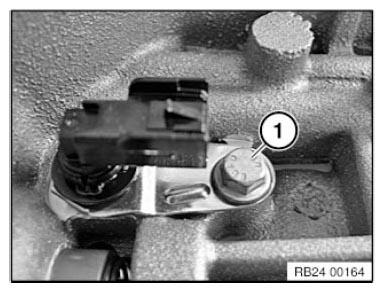

Release screw (1) and remove wheel speed sensor.
Tightening torque 24 30 1AZ .
