51 16 342 Removing and installing/replacing lock barrel for front passenger airbag deactivation

WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Individual parts, switch for front passenger airbag deactivation

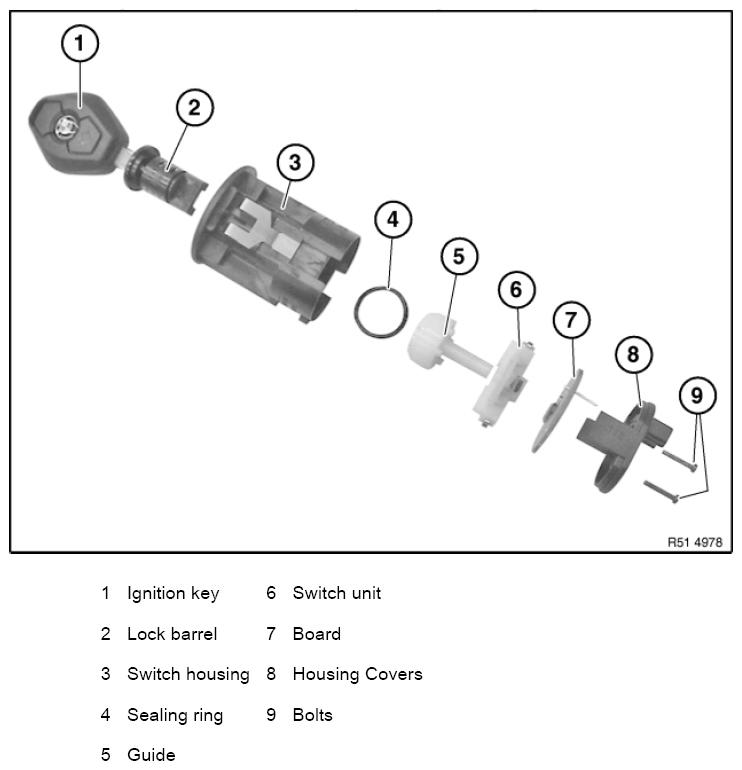

Fig 1: Identifying Front Passenger Airbag Deactivation Switch Components

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove SWITCH FOR FRONT PASSENGER AIRBAG DEACTIVATION .

Release screws (1).

Remove housing cover (2) and PCB (3) underneath.

Fig 2: Identifying PCB, Housing Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove switch unit (1) in upward direction.

Installation note:

Switch unit (1) can only be installed in one position.

PCB (4) can be inserted turned through 180°.

Position of magnet sensor (3) of PCB (4) must match up with permanent magnet (2) of switch unit (1).

Fig 3: Identifying PCB, Permanent Magnet, Magnet Sensor And Switch Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove guide (1) in upward direction.

Installation note:

Guide (1) can only be installed in one position.

Fit gasket (2) on guide (1) and insert in switch housing.

Fig 4: Identifying Switch Housing Gasket And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Ignition key must be inserted in lock barrel, otherwise this will be destroyed when removed.

Insert ignition key in lock barrel (2).

Carefully release catches (1) in outward direction and press out lock barrel (2) with ignition key.

Installation note:

Fig 5: Releasing Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Lock barrel (2) can only be inserted in "ON" or "OFF" switch position.

Lock barrel
