51 16 080 Removing and installing or replacing sun visor and left or right counter support
WARNING: This page is about a different car, the 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.
Fold down sun visor (1).
Lever out trim (3) on counter support (2) and release screw underneath.
Lever out cover (5) on joint and release screws (4).
Installation:
Cover (5) and trim (3) must not be damaged.

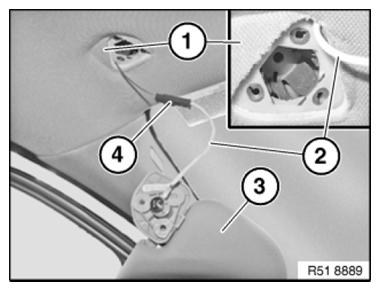

Pull down headlining (1) with suitable tool until plug connection (4) can be disconnected from cable (2).
Installation:
Place plug connection (4) and cable (2) correctly back above headlining.
Disconnect plug connection (4).
Pull down sun visor (3).
Installation:
Perform function check of lighting for makeup mirror light.
